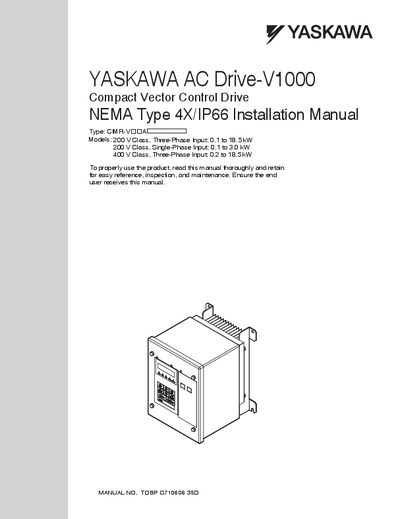

This document is the installation manual for the YASKAWA AC Drive-V1000 Compact Vector Control Drive NEMA Type 4X/IP66. It provides instructions for installation and usage of the product. The drive is suitable for 200 V Class and 400 V Class three-phase inputs, and features compact vector control.
This manual provides detailed instructions for installing the YASKAWA V1000 AC Drive with NEMA Type 4X/IP66 protection. It includes safety guidelines, component descriptions, mechanical and electrical installation steps, and acceptance criteria.
The document also covers cable gland selection, drive cooling fan setup, drive replacement procedures, and EMC compliance. Reference numbers and contact information for YASKAWA worldwide offices are listed at the end.
| Type | CIMR-VOOAL |
|---|---|
| 200 V Class, Three‑Phase Input Power | 0.1 to 18.5 kW |
| 200 V Class, Single‑Phase Input Power | 0.1 to 3.0 kW |
| 400 V Class, Three‑Phase Input Power | 0.2 to 18.56 kW |
| Enclosure Rating | NEMA Type 4X/IP66 |
It indicates a hazardous situation that could result in death or serious injury if not avoided.
The manual number is TOBP C710606 35D.
