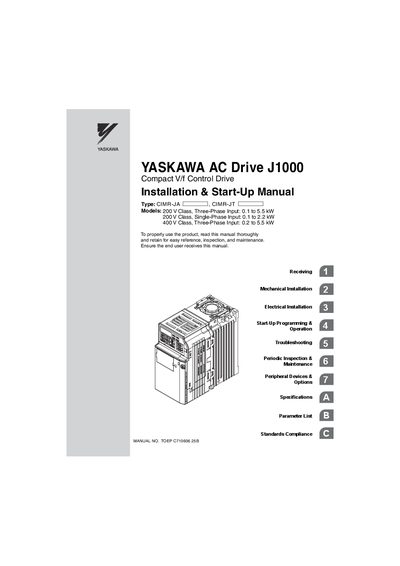

This manual provides the steps for installing and starting up the YASKAWA AC Drive J1000 Compact V/f Control Drive. It provides information on the drive specifications, parameter list, standards compliance, mechanical installation, electrical installation, start-up, programming and operation, troubleshooting, periodic inspection and maintenance.
This manual provides step‑by‑step instructions for receiving, mechanically installing, and electrically wiring the YASKAWA J1000 AC drive. It includes safety guidelines, wiring diagrams, and detailed procedures for connecting peripheral devices and options.
The document also describes start‑up programming, operation modes, troubleshooting methods, periodic inspection, and maintenance tasks. Technical specifications, parameter lists, and standards compliance information are provided in the later sections.
| 200 V Class, Three‑Phase Input Power Range | 0.1 kW to 5.5 kW |
|---|---|
| 200 V Class, Single‑Phase Input Power Range | 0.1 kW to 2.2 kW |
| 400 V Class, Three‑Phase Input Power Range | 0.2 kW to 5.5 kW |
| Enclosure Rating | IP20/Open‑Chassis |
Check the Model Number and Nameplate in Section 1.2 "Model Number and Nameplate Check" of the manual.
The wiring diagrams are in the Electrical Installation chapter, sections 3.2 "Standard Connection Diagram" and 3.3 "Main Circuit Connection Diagram".
Perform the test as described in Section 4.7 "No-Load Operation Test".
