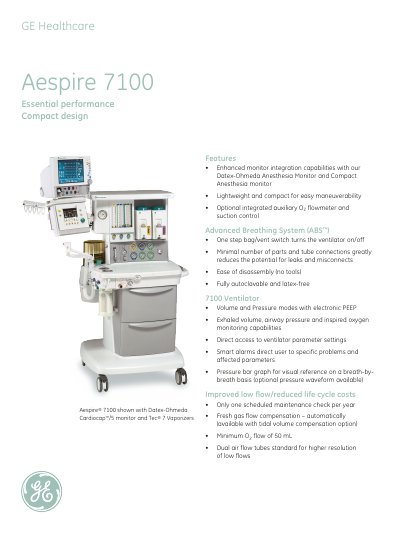

Aespire 7100 is a portable ventilator from GE Healthcare. It has an automatic oxygen compensation function and can monitor exhaled volume, airway pressure, and inspired oxygen parameters through a portable display
The Aespire 7100 ventilator is a lightweight, compact unit designed for easy maneuverability and integration with Datex‑Ohmeda anesthesia monitors. It offers advanced breathing system features such as electronic PEEP, smart alarms, and optional auxiliary O₂ flowmeter, with a minimal number of parts to reduce leaks.
The manual details physical dimensions, electrical and pneumatic specifications, ventilation modes, accuracy data, and environmental limits, helping clinicians set up, operate, and maintain the device safely and efficiently.
| Height | 134.5 cm (52.9 in) |
|---|---|
| Weight | Approximately 108 kg (238 lb) |
| PEEP range | OFF to 30 cm H₂O |
| Tidal volume range | 5 to 1500 mL |
| Airway pressure range | -9 to 99 cm H₂O |
| Power input | 100‑120 V AC, 50/60 Hz, 15 A |
| Battery backup time (typical) | 90+ minutes |
| Flow range | 2 to 70 L/min |
| Operating temperature | 10 °C to 40 °C (50 °F to 104 °F) |
The battery provides more than 90 minutes of backup under typical operating conditions.
It requires a 100‑120 V AC input at 50/60 Hz with a 15 A rating.
PEEP can be set from OFF up to 30 cm H₂O.
The ventilator is 134.5 cm tall, 72 cm wide, and 73 cm deep, weighing about 108 kg.
