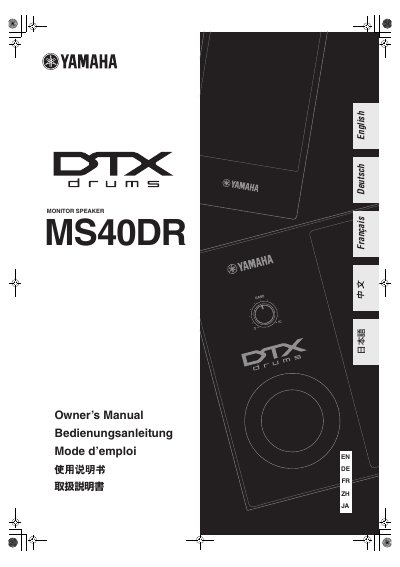

Yamaha MS40DR Monitor Speaker Owner's Manual
The Yamaha MS40DR is a monitor speaker designed for professional audio applications. This owner's manual covers essential safety warnings, including electrical shock hazards and fire risks associated with improper use or exposure to moisture.
The document details proper installation procedures, such as ensuring adequate ventilation space around the unit due to its built-in amplifier which generates heat. It also outlines precautions for handling power cords, connecting accessories, and maintaining the equipment to prevent damage from physical impact or environmental factors.
Yamaha MS40DR specifications
| Output Power (Surround speakers) | 20 W + 20 W |
|---|---|
| Output Power (Subwoofer) | 40 W |
| Frequency Response | 32 Hz – 20 kHz |
| Power Supply | AC 220 V, 50 Hz |
| Dimensions (Surround speaker) | 97 × 159 × 178 mm |
| Dimensions (Subwoofer) | 350 × 210 × 321 mm |
| Weight (Surround speakers) | 0.7 kg each (2 pcs) |
| Weight (Subwoofer) | 7.4 kg |
All Yamaha MS40DR documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the minimum clearance required around the speaker for proper ventilation?
You must leave at least 20cm (about 8 inches) of space above and below the unit, and 10cm (4 inches) on all sides.
What should you do if liquid seeps into the instrument?
Turn off the power immediately, unplug the power cord from the AC outlet, and have it inspected by qualified service personnel.
How should I connect the power cable for the MS40DR?
Insert the AC power cord firmly into a wall outlet and set the main power switch to ON.
