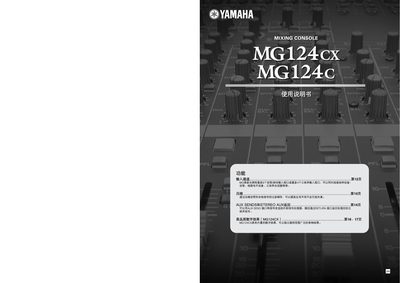

This document is the user manual for the ZH 2 MG124CX/MG124C audio equipment. The document emphasizes not modifying the unit and using high-quality shielded cables for connection. Additionally, the product complies with FCC requirements and will not cause interference with other electronic devices.
This manual covers the basic preparation, wiring, and operation of the Yamaha MG124CX/MG124C professional audio mixing console. It includes safety notices, power‑adapter requirements, and detailed guidance on using the console’s inputs, outputs, and built‑in digital effects (MG124CX only).\n\nThe document also provides troubleshooting tips, specifications such as temperature rise and input channel counts, and a list of accessories and authorized service contacts worldwide. This manual is written in Chinese.
| Maximum input channels | Up to 6 mic/line inputs or up to 4 stereo inputs |
|---|---|
| Temperature rise on power‑on | 15 °C to 20 °C |
| Panel temperature at high ambient | May exceed 50 °C when ambient >30 °C |
| Digital effects | Built‑in digital effects (MG124CX only) |
Yes, the manual covers both models; the MG124CX includes built‑in digital effects while the MG124C does not.
