Maxim Integrated 78M6612 Split-Phase Evaluation Board User Manual

Provides the user manual for 78M6612 split-phase evaluation board. The manual includes the introduction of the product, system requirements, safety notes, firmware demo code introduction, installation method, calibration method, Windows graphical user interface (GUI) installation and use method, schematics, bill of materials and PCB layouts.

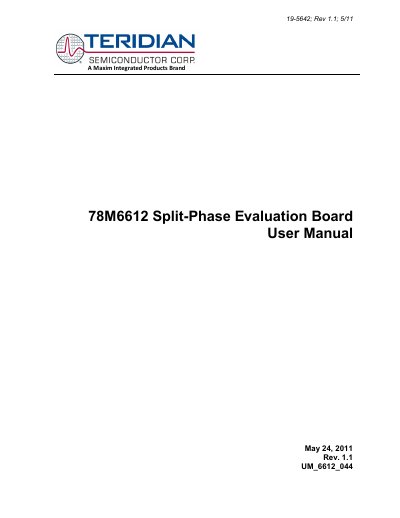

Maxim Integrated 78M6612 Split-Phase Evaluation Board User Manual - cover page
Brand
Teridian
Category
Other Electronics
Document type
User Manual
Language
English
Pages
30
File format
PDF
File size
1.5 MB
Published
11 April, 2012
Updated
30 September, 2023
Model
78M6612
MD5 checksum
5667ED96E30CCE37C22FC3DCD4D9C062

About this manual

This manual describes the 78M6612 Split‑Phase Evaluation Board, an electrical measurement unit that uses the Teridian 78M6612 power‑and‑energy measurement IC. It covers package contents, system requirements, safety and ESD notes, firmware demo code, and testing procedures before shipping.

Key sections include installation (basic connection, relay configuration, optional UART and USB driver setup), calibration, a Windows‑based graphical user interface for data display, schematics, bill of materials, PCB layouts, ordering information and contact details. The document also provides wiring diagrams, connector pin assignments and CLI command references for advanced control.

What's inside

  • Introduction
  • System Requirements
  • Safety and ESD Notes
  • Installation
  • Calibration
  • Windows GUI
  • Schematics and PCB Layouts
  • Bill of Materials
  • Ordering Information
  • Contact Information

Specifications

External power supply requirement+12 VDC @ 1 A
Board power consumption from external supply< 100 mA

Frequently asked questions

What are the system requirements for the 78M6612 Evaluation Board?

A PC with at least a 1 GHz processor, 1 GB RAM, running Windows XP or Windows 2000, equipped with a USB port and a 1024 × 768 display.

How is the evaluation board powered?

It can be powered by the on‑board AC‑DC switcher or by an external +12 VDC supply; the board draws less than 100 mA from the external supply.

What safety precautions are required when handling the board?

Live AC voltages must be treated with caution, standard ESD precautions are required, and the high‑side reference topology means the V3P3 pin is tied to neutral, creating a ground reference disparity.
