Start here

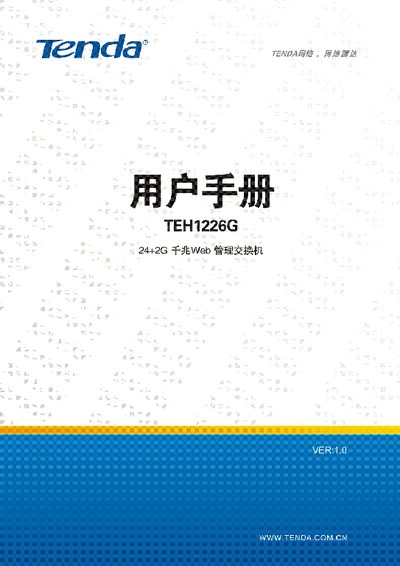

Tenda TEH1226G 24+2G Gigabit Web Managed Switch User Manual
This document describes the features and operation of the Tenda TEH1226G 24+2G gigabit web‑managed switch. It covers hardware specifications, web‑based management interface, VLAN, QoS, MAC filtering, DHCP server and other networking functions.
The guide includes step‑by‑step procedures for initial installation, configuring ports, creating VLANs, setting QoS policies, and performing a factory reset. Network parameters such as default IP address and supported VLAN ID range are also provided.
Tenda TEH1226G specifications
| 10/100M RJ45 ports | 16 (TEH1216) / 24 (TEH1224, TEH1224G, TEH1226G) |
|---|---|
| 10/100/1000M RJ45 ports | 2 (TEH1224G, TEH1226G) |
| SFP (Mini GBIC) ports | 2 shared SFP ports (TEH1226G only) |
| Backplane bandwidth | Up to 8.8/8.8/4.8/3.2 Gbps |
| MAC address table size | 8 K entries |
| VLAN support | 64 groups of IEEE 802.1Q Tag VLAN |
| Power input | AC100‑240 V, 50‑60 Hz |
Source: TENDA WEB manage Network SwitcheTEH1216/1224/1226G/1224G products Service Manual
All Tenda TEH1226G documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
How do I reset the switch to factory defaults?
Press and hold the Reset button until the SYS LED changes from solid to flashing and then turns off; the switch will then restore factory settings.
From: TENDA WEB manage Network SwitcheTEH1216/1224/1226G/1224G products Service Manual
How can I set a static IP address on the switch?
Open the network connection properties, select “Use the following IP address”, enter an address like 192.168.0.xxx and subnet mask 255.255.255.0, then apply the settings.
From: TENDA WEB manage Network SwitcheTEH1216/1224/1226G/1224G products Service Manual
