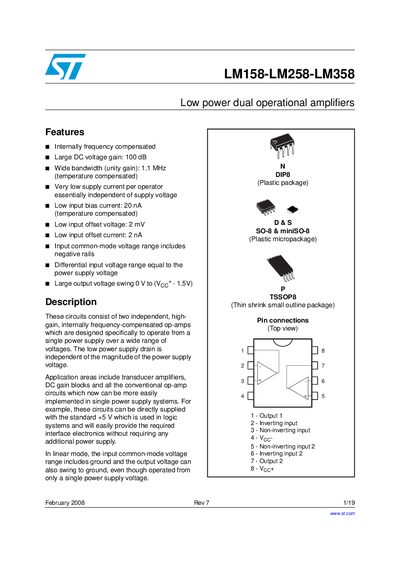

STMicroelectronics LM158 LM258 LM358 Datasheet
This handbook describes the LM158, LM258, and LM358 low‑power dual operational amplifiers. It lists their main features such as internally frequency‑compensated design, large DC voltage gain, low supply current, low input bias and offset specifications, and a wide output swing.
The document includes absolute maximum ratings, recommended operating conditions, detailed electrical characteristics (gain‑bandwidth product, slew rate, CMRR, output current limits, etc.), pin‑out diagrams, revision history, and legal notices. It is intended for designers who need precise performance data for these op‑amps.
STMicroelectronics LM158-LM258-LM358 specifications
| Supply voltage range (absolute maximum) | +/-16 V or +/-32 V |
|---|---|
| Supply voltage range (recommended) | 3 V to 30 V |
| Input offset voltage | Typical 2 mV |
| Input bias current | Typical 20 nA |
| Common‑mode rejection ratio (CMRR) | 70 dB to 85 dB |
