Key facts
- Brand
- Phoenix Contact
- Model
- EG 45-G
- Category
- Other device
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-11
Start here

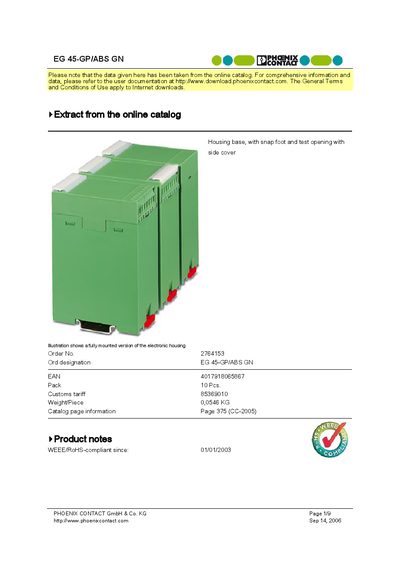

Phoenix Contact EG 45-GP/ABS GN Product Handbook
Product Leaflet 9 pages · 260 KB · EN
The EG 45-GP/ABS GN is a green ABS housing with 16 positions, designed for use in terminal block applications. It operates from -40 °C to 80 °C and complies with UL 94 HB flammability class.
The handbook provides ordering numbers, weight, EAN, drawing references, a list of compatible accessories and additional housing variants, as well as contact details for Phoenix Contact.
Phoenix Contact EG 45-G specifications
| Housing material | Acryl butadiene styrene (ABS) |
|---|---|
| Length | 75 mm |
| Width | 45 mm |
| Number of positions | 16 |
| Ambient temperature (operation) | -40 °C … 80 °C |
| Inflammability class | UL 94 HB |
All Phoenix Contact EG 45-G documents by type
Product Leaflet 2
Questions answered in these manuals
What material is the EG 45-GP/ABS GN housing made of?
The housing is made of Acryl butadiene styrene (ABS).
How many positions does the EG 45-GP/ABS GN provide?
It provides 16 positions.
What material is the EG 45-G/ABS GN housing made of?
The housing is made of Acryl butadiene styrene (ABS).
How many positions does the EG 45-G/ABS GN provide?
It provides 16 positions.
