Start here

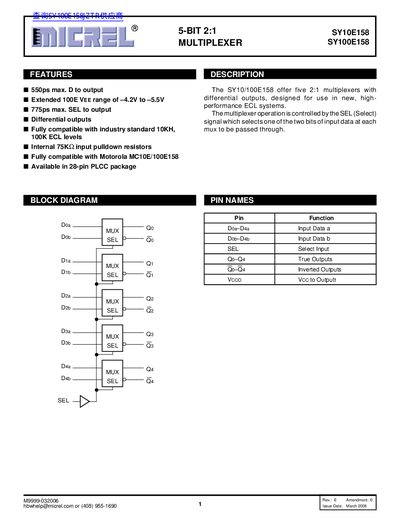

Micrel SY10E158 / SY100E158 5‑Bit 2:1 Multiplexer Datasheet
The SY10E158 and SY100E158 are 5‑bit 2:1 multiplexers designed for high‑performance ECL systems. They feature a VEE range of –4.2 V to –5.5 V, internal 75 kΩ input pulldown resistors, and are fully compatible with industry‑standard 10 kΩ ECL levels and Motorola MC10E/100E158 devices.
The datasheet includes a pin‑out diagram, ordering information for various commercial and Pb‑free packages, truth tables, DC and AC electrical characteristics, propagation delays, rise/fall times, and mechanical dimensions for the 28‑pin PLCC (J28‑1) package.
Micrel SY100E158 specifications
| Multiplexer count | 5 (2:1) |
|---|---|
| VEE voltage range | -4.2 V to -5.5 V |
| Package type | 28‑pin PLCC |
| Within‑device skew (t_skew) | 60 ps |
| Rise/Fall time (tr) | 275 ps – 650 ps (typ 425 ps) |
All Micrel SY100E158 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What package type does the SY10E158/SY100E158 use?
It is supplied in a 28‑pin PLCC (J28‑1) package.
From: Micrel SY10E158 / SY100E158 5‑Bit 2:1 Multiplexer Datasheet
What are the ordering part numbers for the SY10E158?
Typical part numbers include SY10E158JC, SY10E158JCTR, SY10E158JZ, and their Pb‑free equivalents.
From: Micrel SY10E158 / SY100E158 5‑Bit 2:1 Multiplexer Datasheet
What is the VEE voltage range for the SY10E158?
The device operates with a VEE range of -4.2 V to -5.5 V.
How many multiplexers does the SY10E158 provide?
It provides five 2:1 multiplexers.
