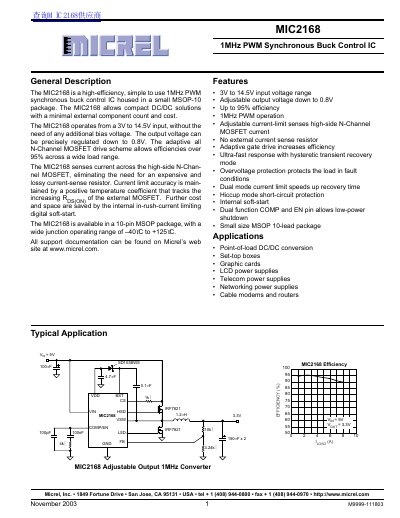

Micrel MIC2168 1MHz PWM Synchronous Buck Control IC Datasheet
Datasheet 14 pages · 157 KB · EN
The MIC2168 is a high-efficiency, simple to use 1MHz PWM synchronous buck control IC housed in a small MSOP-10 package. It allows compact DC/DC solutions with a minimal external component count and cost. The device operates from a 3V to 14.5V input without the need for any additional bias voltage.
Read onlineMicrel MIC2168 specifications
| Input Voltage Range | 3V to 14.5V |
|---|---|
| Output Voltage Range | 0.8V to Vin |
| Operating Frequency | 1MHz |
| Efficiency | Up to 95% |
| Package Type | MSOP-10 |
| Junction Temperature Range | -40°C to +125°C |
| Oscillator Frequency | 900 kHz to 1100 kHz |
Source: Micrel MIC2168 1MHz PWM Synchronous Buck Control IC Datasheet
All Micrel MIC2168 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range for the MIC2168?
The device operates from a 3V to 14.5V input.
From: Micrel MIC2168 1MHz PWM Synchronous Buck Control IC Datasheet
Does the MIC2168 require an external current sense resistor?
No, it senses current across the high-side N-Channel MOSFET.
From: Micrel MIC2168 1MHz PWM Synchronous Buck Control IC Datasheet
