Micrel MIC2207 Evaluation Board User Guide
The Micrel MIC2207 is a high efficiency PWM buck (step-down) regulator that provides up to 3A of output current. It operates at 2MHz and has proprietary internal compensation that allows a closed loop bandwidth of over 200 KHz. The low on-resistance internal p-channel MOSFET of the MIC2207 allows efficiencies over 94% and reduces external component count.
The evaluation board requires an input power source able to deliver greater than 2.7V at over 3A. The output voltage is adjustable from a default of 1.8V down to 1V by changing the feedback resistors. Users must ensure the supply voltage remains between 2.7V and 5.5V to avoid damage.
Micrel MIC2207 specifications
| Operating Frequency | 2MHz |
|---|---|
| Supply Voltage Range | 2.7V to 5.5V |
| Output Voltage Adjustment | Down to 1V |
| Efficiency | Over 94% |

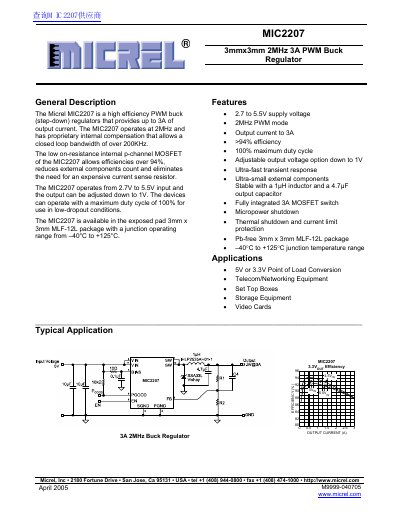

Source: Micrel MIC2207 3mmx3mm 2MHz 3A PWM Buck Regulator Datasheet
All Micrel MIC2207 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current of the MIC2207?
The device provides up to 3A of output current.
What voltage range can the input operate within?
The regulator operates from 2.7V to 5.5V input.
Can the output voltage be adjusted down to 1V?
Yes, the adjustable output voltage option goes down to 1V.
From: Micrel MIC2207 3mmx3mm 2MHz 3A PWM Buck Regulator Datasheet
What is the operating frequency of the regulator?
The MIC2207 operates at a fixed frequency of 2MHz.
From: Micrel MIC2207 3mmx3mm 2MHz 3A PWM Buck Regulator Datasheet
What is the input voltage range of the MIC2207?
The MIC2207 operates with an input voltage from 2.7 V to 5.5 V.
