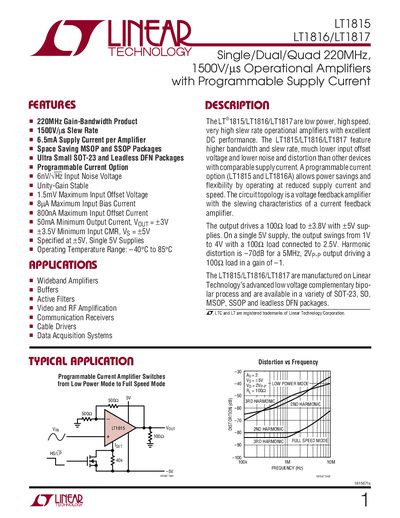

1 LT1815 LT1816/LT1817 181567fa Single/Dual/Quad 220MHz, 1500V/µs Operational Amplifiers with Programmable Supply Current with excellent DC performance.
The LT1815/LT1816/LT1817 family are low‑power, high‑speed operational amplifiers offering a 220 MHz gain‑bandwidth product, 1500 V/µs slew rate, and low input offset voltage. They are available in compact SOT‑23, MSOP, SSOP and lead‑less DFN packages, with a programmable current option for power‑saving operation.
Typical applications include wideband amplification, active filters, video and RF amplification, cable drivers, and data‑acquisition systems. Detailed electrical characteristics, absolute maximum ratings, and package dimensions are provided for design reference.
| Gain‑Bandwidth Product | 220 MHz |
|---|---|
| Slew Rate | 1500 V/µs |
| Input Offset Voltage (max) | 1.5 mV |
| Supply Current per Amplifier | 6.5 mA |
| Operating Temperature Range | –40 °C to 85 °C |
The devices have a slew rate of 1500 V/µs.
Each amplifier consumes about 6.5 mA of supply current.
The LT1815 offers a typical gain‑bandwidth product of 220 MHz.
They are specified for operation from –40 °C to 85 °C.
