Start here

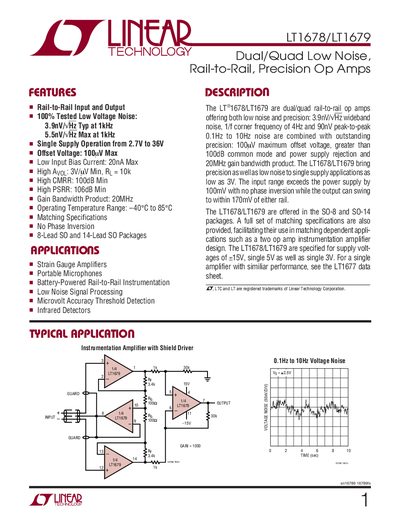

Linear Technology LT1678/LT1679 Datasheet
The LT1678 and LT1679 are dual/quad rail‑to‑rail operational amplifiers offering very low noise (3.9 nV/√Hz at 1 kHz) and high precision (typical 100 µV offset). They operate from a single supply of 2.7 V to 36 V and can swing within 170 mV of either rail.
Typical applications include strain‑gauge amplifiers, portable microphones, battery‑powered instrumentation, low‑noise signal processing, microvolt‑accuracy threshold detection, and infrared detectors. The devices are supplied in 8‑lead SO and 14‑lead SOQ packages with full matching specifications for instrumentation‑amplifier designs.
Linear Technology LT1679 specifications
| Supply Voltage Range | 2.7 V to 36 V |
|---|---|
| Gain Bandwidth Product | 20 MHz |
| Typical Input Offset Voltage | 100 µV |
| Typical Input Bias Current | 20 nA |
| Slew Rate | 4‑6 V/µs |
| Supply Current per Amplifier | 34 mA |
| Output Voltage Swing Low | 170 mV from rail |
All Linear Technology LT1679 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the LT1678/LT1679 support?
The devices operate from a single supply of 2.7 V up to 36 V.
What is the typical input offset voltage of the LT1678/LT1679?
Typical input offset voltage is 100 µV.
What is the typical low‑frequency noise of the LT1678?
The typical low‑frequency noise is 3.9 nV/√Hz at 1 kHz.
What supply voltage range can the LT1678 operate from?
It can operate from a single supply voltage of 2.7 V up to 36 V.
