Key facts
- Brand
- Lenovo
- Model
- M80
- Documents
- 2
- Languages
- ZH
- Last added
- 2000-01-01
Start here

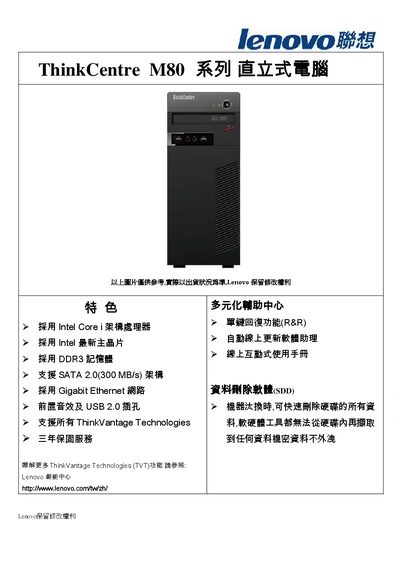

Lenovo ThinkCentre M80 (7493) Upright Computer Product Leaflet
The ThinkCentre M80 series upright computer from Lenovo offers Intel Core i7 processing, DDR3 memory, Gigabit Ethernet, and a range of ThinkVantage technologies. It includes front‑panel USB 2.0 ports, audio jacks, and optional optical drives.
Detailed specifications list a 2.93 GHz Intel Core i7‑870 CPU, 2 GB DDR3 RAM (expandable to 16 GB), 500 GB 7200 RPM SATA‑II hard drive, NVIDIA 310 graphics, and Windows 7 Professional support. The chassis measures 160 mm × 422 mm × 388 mm and ships with a 280 W universal power supply. Warranty coverage is three years for parts and on‑site service. This manual is written in Chinese.
Lenovo M80 specifications
| Processor | Intel Core i7‑870 (2.93 GHz, 8 MB cache, 1333 MHz FSB) |
|---|---|
| Hard Drive | 500 GB 7200 RPM SATA 2.0 |
| Operating System | Windows 7 Professional |
| Graphics | NVIDIA 310 with 512 MB dedicated memory |
| Network | Gigabit Ethernet (10/100/1000) with Wake‑On‑LAN |
| Front USB Ports | 2 × USB 2.0 |
| Dimensions (W×D×H) | 160 mm × 422 mm × 388 mm |
| Power Supply | 280 W, 110 V/240 V auto‑switch |
| Warranty | 3 years parts and labor, on‑site service |
Source: Lenovo ThinkCentre M80 (7493) Upright Computer Product Leaflet
All Lenovo M80 documents by type
Questions answered in these manuals
What warranty does the ThinkCentre M80 have?
It includes three years of parts coverage and three years of on‑site labor service.
From: Lenovo ThinkCentre M80 (7493) Upright Computer Product Leaflet
Which operating system is supported?
The system supports Windows 7 Professional.
From: Lenovo ThinkCentre M80 (7493) Upright Computer Product Leaflet
Which operating system is supported on this model?
The system is supplied with Windows 7 Professional 32‑bit.
From: Lenovo ThinkCentre M80 Series Upright Computer Product Leaflet
What security features are available?
The machine supports BIOS passwords, hard‑disk passwords, a lock slot, and configurable boot order.
From: Lenovo ThinkCentre M80 Series Upright Computer Product Leaflet
