Honeywell SS5 series Hall effect surface mount sensor
The SS5 series digital Hall‑effect sensors are surface‑mount devices with a gull‑wing package, designed for harsh environments such as automotive applications. They are available in bipolar, unipolar and latch types and support a wide temperature and supply voltage range. Typical uses include brushless DC motors, digital current sensing, brake sensors, hydraulic cylinder position detection, speed sensing and magnetic card detection.

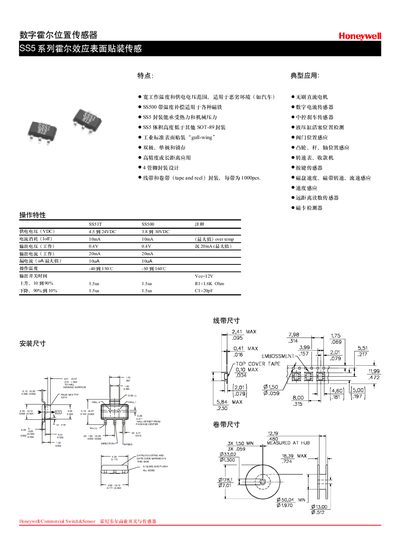

The manual lists key electrical specifications: supply voltage from 4.5 VDC to 24 VDC (up to 30 VDC for some models), 10 mA standby current, 20 mA output current, 10 µA leakage current, and an operating temperature range of –40 °C to 150 °C. Detailed magnetic pole characteristics are provided for each model variant. This manual is written in Chinese.
| Supply voltage (VDC) | 4.5 to 24 VDC |
|---|---|
| Current consumption (Ioff) | 10 mA |
| Output current (operating) | 20 mA |
| Leakage current (max) | 10 µA |
| Operating temperature | -40 °C to 150 °C |
The supply voltage ranges from 4.5 VDC to 24 VDC (some models up to 30 VDC).
The sensor can operate from –40 °C up to 150 °C.
