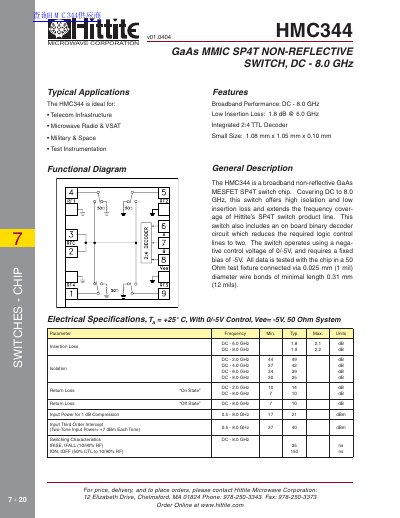

Hittite HMC344 SP4T Non-Reflective Switch Datasheet
The HMC344 is a broadband non-reflective GaAs MESFET SP4T switch chip covering DC to 8.0 GHz. It features high isolation, low insertion loss, and includes an on-board binary decoder circuit that reduces required logic control lines to two. The device operates using a negative control voltage of 0/-5V and requires a fixed bias of -5V.
Read onlineHittite HMC344 specifications
| Frequency Range | DC - 8.0 GHz |
|---|---|
| Input Power for 1 dB Compression | 17 dBm |
| Input Third Order Intercept | 37 dBm |
| Operating Temperature | -40 to +85 °C |
| Storage Temperature | -65 to +150 °C |
| Package Dimensions | 1.08 mm x 1.05 mm x 0.10 mm |
All Hittite HMC344 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the frequency range of the HMC344?
The HMC344 covers a frequency range from DC to 8.0 GHz.
Does the HMC344 include a decoder?
Yes, it includes an on-board binary decoder circuit which reduces the required logic control lines to two.
What are the typical applications for the HMC344LP3?
It is suitable for usage in fiber optics, switched filter banks, and wireless systems below 8 GHz.
From: Hittite HMC344LP3 GaAs MMIC SP4T Non-Reflective Switch Datasheet
What is the frequency coverage of the switch?
The switch covers the frequency range from DC to 8.0 GHz.
From: Hittite HMC344LP3 GaAs MMIC SP4T Non-Reflective Switch Datasheet
