Hittite Microwave Corporation HMC204MS8G Frequency Doubler Datasheet

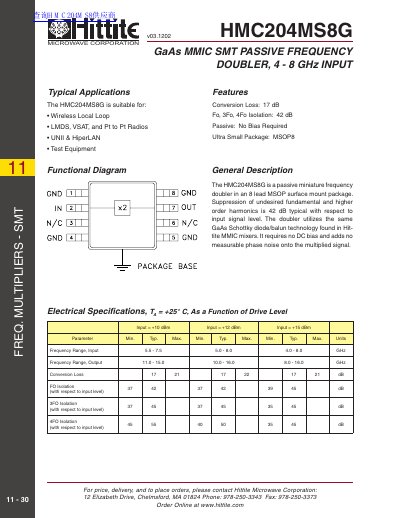

The HMC204MS8G is a passive miniature frequency doubler designed for applications such as LMDS, VSAT, and point-to-point radios. It utilizes GaAs Schottky diode/balun technology in an 8-lead MSOP surface mount package and requires no DC bias.
Read onlineHittite HMC204 specifications
| Frequency Range, Output | 10.0 - 16.0 GHz (Typical) |
|---|---|
| Conversion Loss | 21 dB (Typical) |
| FO Isolation | 42 dB (Typical) |
| Operating Temperature | -40 to +85 °C |
| Package Type | MSOP8 |
Source: Hittite Microwave Corporation HMC204MS8G Frequency Doubler Datasheet
All Hittite HMC204 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the HMC204MS8G require DC bias?
No, it is a passive device that requires no DC bias.
From: Hittite Microwave Corporation HMC204MS8G Frequency Doubler Datasheet
What are the typical applications for this component?
It is suitable for LMDS, VSAT, and point-to-point radios.
From: Hittite Microwave Corporation HMC204MS8G Frequency Doubler Datasheet
Does the HMC204C8 require DC bias?
No, the device is passive and requires no DC bias.
From: Hittite HMC204C8 GaAs MMIC SMT Frequency Doubler Datasheet
What is the input frequency range?
The input frequency range is 4 to 8 GHz.
From: Hittite HMC204C8 GaAs MMIC SMT Frequency Doubler Datasheet
Does the HMC204 require DC bias?
No, the HMC204 is a passive device that requires no DC bias.
What is the input frequency range?
The input frequency range is 4 to 8 GHz.
