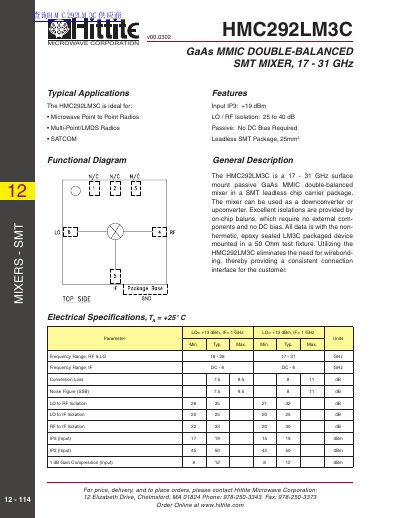

Hittite HMC292LM3C GaAs MMIC Mixer Datasheet
The HMC292LM3C is a GaAs MMIC double-balanced SMT mixer operating from 17 to 31 GHz. It is designed for use as a downconverter or upconverter in microwave applications such as point-to-point radios, multi-point LMDS radios, and SATCOM. The device features excellent on-chip baluns that require no external components or DC bias, utilizing a leadless SMT package.
Read onlineHittite HMC292 specifications
| Conversion Loss | 7.5 - 9.5 dB |
|---|---|
| Noise Figure (SSB) | 7.5 - 9.5 dB |
| Input IP3 | +19 dBm |
| LO/IF Isolation | 25 to 40 dB |
| Operating Temperature | -40 to +85 deg C |
| Storage Temperature | -65 to +150 deg C |
All Hittite HMC292 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the HMC292LM3C require DC bias?
No, the device is passive and requires no DC bias.
What is the recommended handling method for the package?
The package should be handled on the top with a vacuum collet or along the edges with bent tweezers.
Does the HMC292 require DC bias?
No, the HMC292 requires no DC bias because excellent isolations are provided by on-chip baluns.
From: Hittite HMC292 GaAs MMIC Double-Balanced Mixer Datasheet
What is the recommended LO drive power?
The typical LO drive power is +13 dBm.
From: Hittite HMC292 GaAs MMIC Double-Balanced Mixer Datasheet
