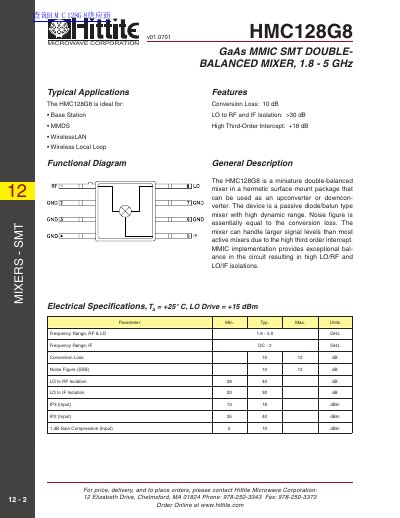

HMC128G8 GaAs MMIC SMT Double-Balanced Mixer Datasheet
The HMC128G8 is a passive diode/balun type GaAs MMIC SMT double-balanced mixer designed for use as an upconverter or downconverter in applications such as base stations, MMDS, wireless LAN, and wireless local loops. The device features high dynamic range and exceptional balance resulting in high LO/RF and LO/IF isolations.
Read onlineHittite HMC128 specifications
| Frequency Range, RF & LO | 1.8 - 5.0 GHz |
|---|---|
| Frequency Range, IF | DC - 2 GHz |
| Conversion Loss (Typ) | 10 dB |
| Noise Figure (SSB) (Typ) | 12 dB |
| LO to RF Isolation (Typ) | >30 dB |
| LO Drive Power | +15 dBm |
Source: HMC128G8 GaAs MMIC SMT Double-Balanced Mixer Datasheet
All Hittite HMC128 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical applications for the HMC128G8?
The device is ideal for base stations, MMDS, wireless LAN, and wireless local loop applications.
From: HMC128G8 GaAs MMIC SMT Double-Balanced Mixer Datasheet
Is the HMC128G8 an active or passive mixer?
It is a passive diode/balun type mixer.
From: HMC128G8 GaAs MMIC SMT Double-Balanced Mixer Datasheet
Does the HMC128 require DC bias?
No, the device is a passive diode/balun type mixer with no DC bias required.
From: Hittite HMC128 GaAs MMIC Double-Balanced Mixer Datasheet
How should the HMC128 chip be handled?
Handle the chip along the edges with a vacuum collet or tweezers; do not touch the surface as it has fragile air bridges.
From: Hittite HMC128 GaAs MMIC Double-Balanced Mixer Datasheet
