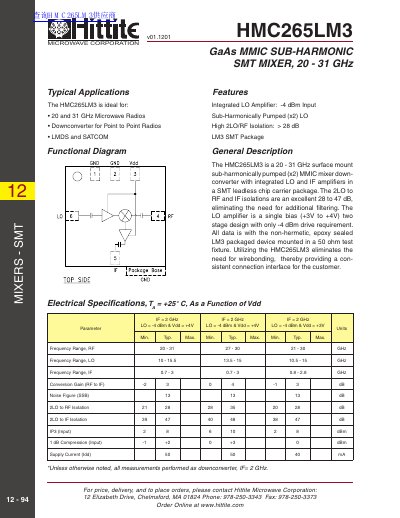

Hittite Microwave Corporation HMC265LM3 Sub-Harmonic SMT Mixer Datasheet
The document describes the HMC265LM3, a 20 to 31 GHz surface mount sub-harmonic (x2) MMIC mixer down-converter with integrated LO and IF amplifiers. It features high isolation between ports, eliminating the need for additional filtering, and is packaged in an LM3 SMT leadless chip carrier.
Read onlineHittite HMC265 specifications
| Frequency Range, RF | 20 - 31 GHz |
|---|---|
| Frequency Range, LO | 10 - 15.5 GHz |
| Frequency Range, IF | 0.7 - 3 GHz |
| Conversion Gain (RF to IF) | -1 to +4 dB |
| Noise Figure (SSB) | 13 dB |
| 2LO to RF Isolation | > 28 dB |
| Supply Current (Idd) | 40 mA to 50 mA |
Source: Hittite Microwave Corporation HMC265LM3 Sub-Harmonic SMT Mixer Datasheet
All Hittite HMC265 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical applications for this mixer?
It is ideal for 20 and 31 GHz Microwave Radios, Downconverter for Point to Point Radios, LMDS, and SATCOM.
From: Hittite Microwave Corporation HMC265LM3 Sub-Harmonic SMT Mixer Datasheet
What is the required LO drive level?
The integrated LO amplifier requires only -4 dBm drive.
From: Hittite Microwave Corporation HMC265LM3 Sub-Harmonic SMT Mixer Datasheet
What is the nominal LO drive requirement?
The LO amplifier requires a nominal drive of -4 dBm.
From: Hittite HMC265 GaAs MMIC Sub-Harmonically Pumped Downconverter Datasheet
What is the gain of the integrated IF amplifier?
The integrated IF amplifier provides 3 dB of gain.
From: Hittite HMC265 GaAs MMIC Sub-Harmonically Pumped Downconverter Datasheet
