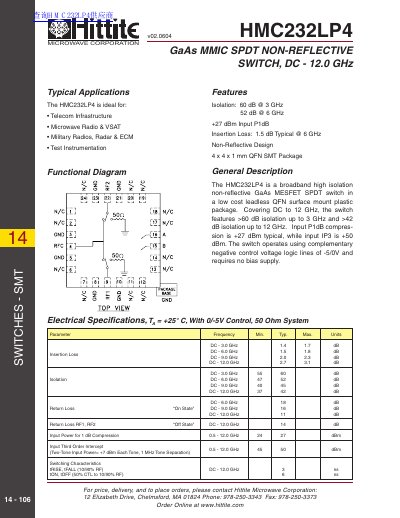

Hittite Microwave HMC232LP4 GaAs MMIC SPDT Switch Datasheet
The HMC232LP4 is a broadband, high-isolation, non-reflective GaAs MMIC SPDT switch designed for operation from DC to 12.0 GHz. It features a low-cost leadless QFN surface mount plastic package and utilizes complementary negative control voltage logic lines (-5/0V), requiring no bias supply.
Key performance characteristics include greater than 60 dB isolation up to 3 GHz and greater than 42 dB isolation up to 12 GHz. The switch supports an input power for 1 dB compression of +27 dBm typical, with an input third-order intercept (IP3) of +50 dBm. It is ideal for applications in telecom infrastructure, military radios/radar/ECM, and test instrumentation.
Hittite HMC232 specifications
| Frequency Range | DC - 12.0 GHz |
|---|---|
| Isolation (3 GHz) | >60 dB |
| Insertion Loss (Typical @ 6 GHz) | 1.5 dB |
| Input P1dB Compression | +27 dBm |
| Package Type | 4x 4x 1mm QFN SMT Package |
Source: Hittite Microwave HMC232LP4 GaAs MMIC SPDT Switch Datasheet
All Hittite HMC232 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Hittite Microwave HMC232LP4 GaAs MMIC SPDT Switch Datasheet 6 p
- Hittite HMC232G8 GaAs MMIC SPDT Switch Datasheet 6 p
- Hittite Microwave Corporation HMC232G7 GaAs MMIC SPDT Switch Datasheet 6 p
- Hittite HMC232C8 GaAs MMIC SMT High Isolation SPDT Switch Datasheet 6 p
- Hittite HMC232 GaAs MMIC SPDT Switch Datasheet 6 p
Questions answered in these manuals
What is the isolation of the HMC232LP4 at 6 GHz?
The switch provides greater than 52 dB isolation up to 6 GHz.
From: Hittite Microwave HMC232LP4 GaAs MMIC SPDT Switch Datasheet
Does the HMC232LP4 require a bias supply?
No, it does not require a bias supply as it uses complementary negative control voltage logic lines.
From: Hittite Microwave HMC232LP4 GaAs MMIC SPDT Switch Datasheet
What are the typical applications for the HMC232G8?
The switch is ideal for Telecom Infrastructure, Microwave Radio & VSAT, Military Radios, Radar & ECM, Space Systems, and Test Instrumentation.
Does the HMC232G8 require a bias supply?
No, the switch requires no bias supply and operates using complementary negative control voltage logic lines of -5/0V.
Is the HMC232G7 a direct replacement for other models?
Yes, it is a form, fit & functional replacement for the HMC132G/.
From: Hittite Microwave Corporation HMC232G7 GaAs MMIC SPDT Switch Datasheet
Does the switch require a bias supply?
No, it requires no bias supply and operates using complementary negative control voltage logic lines of -5/0V.
From: Hittite Microwave Corporation HMC232G7 GaAs MMIC SPDT Switch Datasheet
