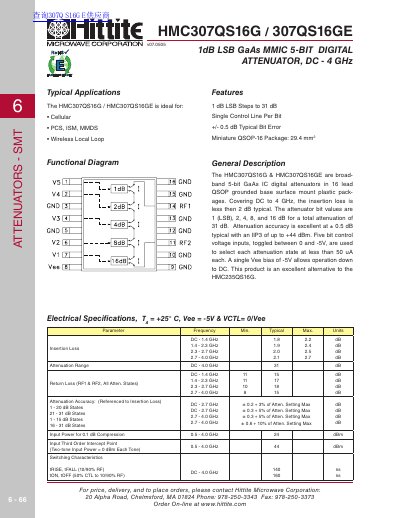

Hittite HMC307QS16G/HMC307QS16GE 1dB LSB GaAs MMIC 5-Bit Digital Attenuator Datasheet
The HMC307QS16G and HMC307QS16GE are broadband 5-bit GaAs IC digital attenuators housed in a 16-lead QSOP grounded base surface mount plastic package. These devices cover a frequency range from DC to 4 GHz, offering an insertion loss of less than 2 dB typical. The attenuator provides 1 dB LSB steps to a total attenuation of 31 dB, with an attenuation accuracy of ±0.5 dB typical and an IIP3 of up to +44 dBm. Five bit control voltage inputs, toggled between 0 and -5V, are used to select each attenuation state at less than 50 uA each. A single Vee bias of -5V allows operation down to DC.
Read onlineHittite HMC307QS16G specifications
| Frequency Range | DC - 4 GHz |
|---|---|
| Attenuation Range | 31 dB |
| Attenuation Accuracy | ± 0.5 dB Typical |
| Input Third Order Intercept Point | 44 dBm |
| Operating Temperature | -40 to +85 °C |
| Package Type | QSOP-16 |
Source: Hittite HMC307QS16G/HMC307QS16GE 1dB LSB GaAs MMIC 5-Bit Digital Attenuator Datasheet
All Hittite HMC307QS16G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical insertion loss of the HMC307QS16G?
The typical insertion loss is less than 2 dB.
From: Hittite HMC307QS16G/HMC307QS16GE 1dB LSB GaAs MMIC 5-Bit Digital Attenuator Datasheet
What is the bias voltage required for operation?
The device requires a single Vee bias of -5V.
From: Hittite HMC307QS16G/HMC307QS16GE 1dB LSB GaAs MMIC 5-Bit Digital Attenuator Datasheet
What is the attenuation step size?
The attenuator provides 1 dB LSB steps.
From: Hittite Microwave Corporation HMC307QS16G Digital Attenuator Datasheet
What are the control voltage requirements?
Five bit control voltage inputs toggled between 0 and -5V are used, with a single Vee bias of -5V.
From: Hittite Microwave Corporation HMC307QS16G Digital Attenuator Datasheet
