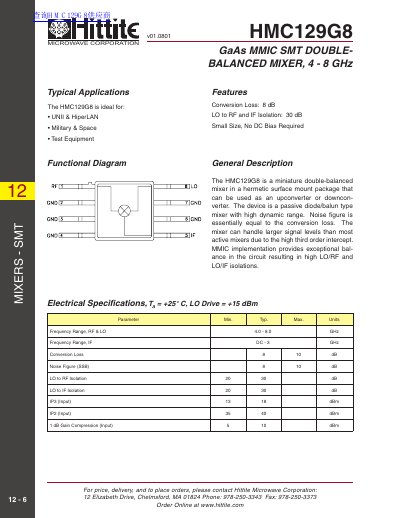

HMC129G8 GaAs MMIC SMT Double-Balanced Mixer Datasheet
The HMC129G8 is a passive diode/balun type GaAs MMIC mixer available in a hermetic surface mount package. It functions as an upconverter or downconverter and features high dynamic range due to its high third order intercept point. The device offers exceptional LO/RF and LO/IF isolations without requiring DC bias.
Read onlineHittite HMC129 specifications
| Frequency Range, RF & LO | 4.0-8.0 GHz |
|---|---|
| Frequency Range, IF | DC -3 GHz |
| Conversion Loss (Typ) | 8 dB |
| Noise Figure (SSB) (Typ) | 8 dB |
| LO to RF Isolation (Typ) | 30 dB |
| IP3 (Input) (Typ) | 18 dBm |
| Operating Temperature | -55 to +125 °C |
