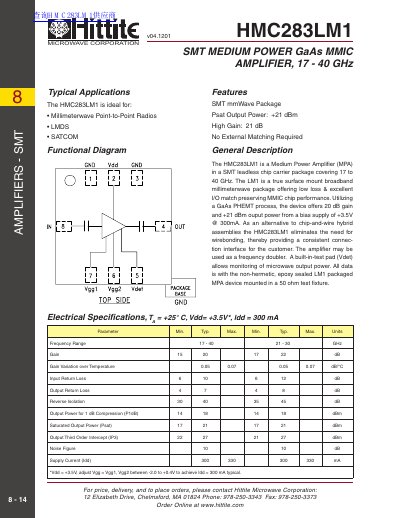

Hittite HMC283LM1 Medium Power Amplifier Datasheet
The HMC283LM1 is an SMT leadless chip carrier package designed for millimeterwave applications such as point-to-point radios and SATCOM. Utilizing a GaAs PHEMNT process, it provides 20 dB gain and +21 dBm output power from a +3.5V supply without requiring external matching networks.
The document includes electrical specifications, typical application curves for gain and return loss versus frequency and temperature, absolute maximum ratings, and mechanical outline drawings. It also provides recommended evaluation PCB layouts and surface mount attachment techniques to ensure optimal performance.
Hittite HMC283 specifications
| Frequency Range | 17-40 GHz (Typ. 21-30 GHz) |
|---|---|
| Gain | 20 dB (Typ.) |
| Saturated Output Power | +21 dBm |
| Supply Voltage | +3.5V |
| Supply Current | 300 mA (Typ.) |
| Operating Temperature | -40 to +85 °C |
All Hittite HMC283 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the ideal applications for this amplifier?
The HMC283LM1 is ideal for Millimeterwave Point-to-Point Radios, LMDS, and SATCOM.
Does this device require external matching?
No, the HMC283LM1 requires no external matching and preserves MMIC chip performance.
What are the typical applications for the HMC283?
The HMC283 is ideal for millimeterwave point-to-point radios, VSAT, and SATCOM applications.
From: Hittite HMC283 GaAs MMIC Medium Power Amplifier Datasheet
Can the HMC283 be used as a frequency multiplier?
Yes, the HMC283 may be used as a frequency doubler by biasing Vg1 into its pinchoff region.
From: Hittite HMC283 GaAs MMIC Medium Power Amplifier Datasheet
