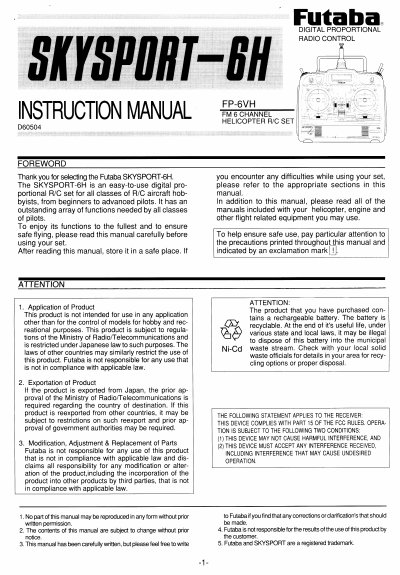

This manual provides instructions for the Futaba SKYSPORT-6H, an easy-to-use digital proportional R/C set designed for all classes of R/C aircraft hobbyists. The set includes a transmitter (FP-T6VH), various receiver options, servos, and a gyro, intended for controlling models for hobby and recreational purposes.
| Operating system | Two-stick, 6 channels, w/helicopter function |
|---|---|
| Transmitting frequency | 35, 36, 40, 41, 50 or 72MHz band |
| Modulation | FM (Frequency Modulation) |
| Transmitter Power requirement | 9.6V Nicd battery(NT-8iB) |
| Transmitter Current drain | 180mA |
| Receiver FP-R116FB Power requirement | 4.8V or 6V Nicd battery (shared with servos) |
| Servo Control system | Pulse width control |
| Servo Operating angle | One side 45 degree min. (including trim) |
| Servo Output torque | 3kg-cm / 420z-in |
| Servo Operating speed | 0.22 sec/60 degree |
| Gyro Power requirement | 4.8V |
| Gyro Weight | 102g /3.60z |
This product is not intended for use in any application other than for the control of models for hobby and recreational purposes.
When powering up the system, first turn on the transmitter power, then turn on receiver power.
The control servos may move erratically causing engines or electric motors to race unexpectedly and possibly resulting in serious injury.
