This is a flight controller manual. The flight controller has high resolution and fast response, supports PCM 1024 system and FM system, 7 channel system, dual rate switch, and comes with a training system.

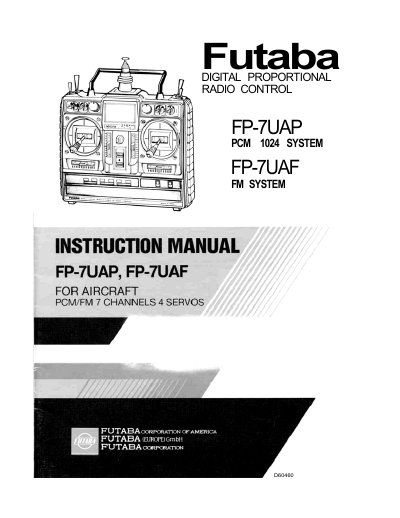

The document provides instructions for the Futaba FP-7UAP (PCM 1024 system) and FP-7UAF (FM system) digital proportional radio control sets. It details set contents, battery charging procedures, and receiver/servo connections with specific precautions for installation.
The guide explains three display modes: Normal, Error, and Edit, allowing users to view battery voltage, function data, and settings. It covers adjustable travel volume, dual rate, exponential, reverse, fail safe, programmable mixing (including snap-roll), aileron differential, flap trim, subtrim, combination switches, and modulation settings.
The charging time is 15 hours.
A fully-charged transmitter battery can be used for about 10 flights of 10 minutes each.
Perform a range check by operating the transmitter from a distance of 20 to 30 meters from the receiver.
