LTC 0440 series color cameras are 1/3-inch format digital color CCD cameras with excellent sensitivity, 480 TV lines of resolution and image quality, making them perform at their best in any application. This fully automatic camera is ready to go right out of the box and is easy to install in even the most demanding applications.

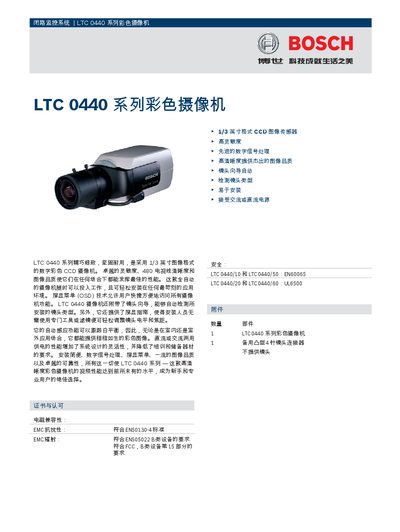

The guide describes the LTC0440 series color camcorder, a compact and durable 1/3‑inch CCD digital camcorder with high sensitivity and excellent image quality. It outlines the camera's features such as automatic white balance, OSD menu, and compatibility with both AC and DC power sources.
Technical specifications are listed, including sensor format, resolution, power requirements, dimensions, weight, and environmental limits. The document also details safety certifications, accessory part numbers, and wiring connections for proper installation and operation. This manual is written in Chinese.
| Sensor format | 1/3‑inch CCD |
|---|---|
| Resolution (horizontal x vertical) | 752 x 582 pixels |
| Minimum illumination (PAL) | 0.40 lux |
| Power input (PAL) | 12 VDC (10.8‑39 VDC) |
| Dimensions (W×H×D) | 58 mm × 66 mm × 122 mm |
| Weight | 0.45 kg |
| Operating temperature | -20 °C to 50 °C |
The camcorder can accept both AC and DC power sources.
LTC0440/10 and LTC0440/50 comply with EN60065, while LTC0440/20 and LTC0440/60 comply with UL6500.
The minimum illumination is 0.40 lux for PAL and 0.87 lux for NTSC operation.
