The LTC 0356 series are digital black and white CCD cameras with 1/3 inch image format, outstanding sensitivity and high definition and infrared filter. This camera can perform best in traffic control places. The easy installation, digital signal processing, on-screen menu, top image quality and excellent reliability bring the video performance of this high definition black and white camera to a new high.

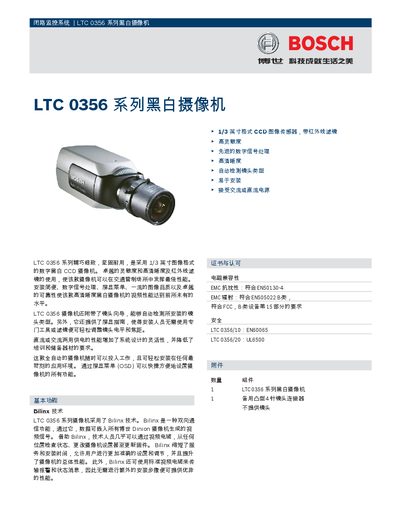

This manual describes the Bosch LTC 0356 series black‑and‑white camcorder, its features, and how to install and operate the device safely. It includes details on power options, OSD controls, and Bilinx communication functions.
Key specifications such as sensor type, resolution, power consumption, operating temperature, and video output levels are listed, along with accessory information and hardware connector details. This manual is written in Japanese.
| Resolution (LTC0356/10) | 752 x 582 pixels |
|---|---|
| Resolution (LTC0356/20) | 582 x 494 pixels |
| Power consumption | 4 W (excluding power supply) |
| Operating temperature | -20 °C to 50 °C |
| Storage temperature | -25 °C to 70 °C |
| Sensor type | 1/3‑inch CCD |
| Video output level | 1.0 Vpp, 75 Ω |
The camcorder can be powered by either AC or DC sources.
It uses a 1/3‑inch CCD sensor.
The video output is 1.0 Vpp into a 75 Ω load.
