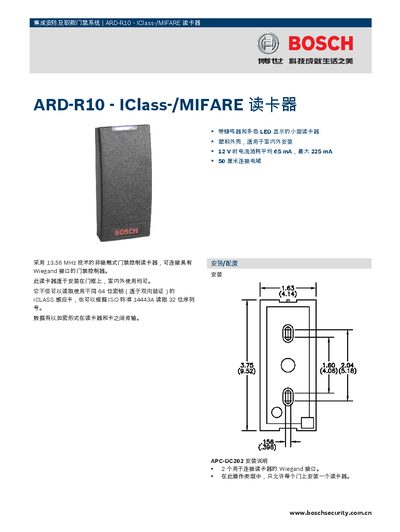

ARD-R10 is a contactless door access control reader from Bosch Security Systems that can be connected to door access controllers with Wiegand interface.
The ARD‑R10 is a compact 13.56 MHz contactless reader designed for indoor and outdoor door‑frame installation. It supports iCLASS cards with 64‑bit keys and ISO 14443A MIFARE cards, transmitting data encrypted between the card and reader. The unit features a multi‑color LED indicator and a buzzer for status feedback.
The manual provides installation and configuration instructions, including wiring via the Wiegand interface, mounting clearances, and environmental requirements. Technical specifications such as dimensions, power consumption, operating temperature, humidity range, IP65 protection, and reading distance are listed for proper integration with access control systems like the APC‑DC202 controller. This manual is written in Chinese.
| Operating frequency | 13.56 MHz |
|---|---|
| Power supply | 10‑16 V DC |
| Current consumption (12 V) | Average 65 mA, max 225 mA |
| Operating temperature | -35 °C to 65 °C |
| Relative humidity | 5 % to 95 % (non‑condensing) |
| Ingress protection | IP65 |
| Dimensions (L×W×H) | 102.6 mm × 48.3 mm × 20.3 mm |
| Weight | 90.7 g |
| Interface | Wiegand |
| LED indicator | Multi‑color LED |
| Reading distance | 5 cm to 7.6 cm |
| Supported card types | iCLASS, MIFARE |
The reading distance ranges from 5 cm to 7.6 cm.
The device is rated IP65, providing protection against dust and water.
