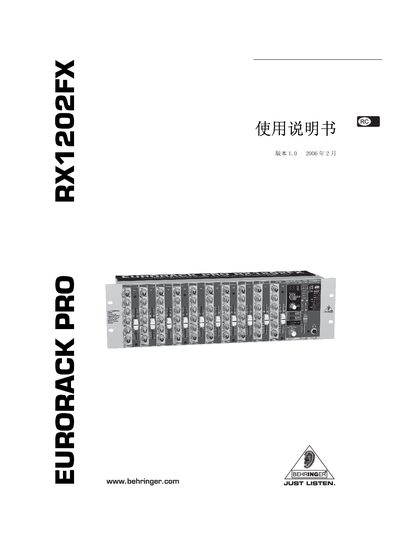

Behringer EURORACK PRO RX1202FX User Manual
This manual begins with important safety instructions, emphasizing proper grounding, ventilation, and the prohibition of opening the unit without professional assistance. It also outlines the warranty, registration process, and recommended handling of the equipment during transport and installation.
The document then describes the console’s layout, including 8 phantom‑powered microphone inputs, 4 line inputs, 12 total channels, built‑in 24‑bit digital effects processor, and extensive routing options such as AUX sends, FX returns, and main/monitor outputs. Detailed connection diagrams, power requirements, and usage tips for studio and live‑sound applications are provided, followed by a full technical data sheet. This manual is written in Chinese.
Behringer eurorack RX1202FX specifications
| Microphone input frequency response | < 10 Hz – 200 kHz |
|---|---|
| Microphone input gain range | +10 dB to +60 dB |
| Maximum input level (mic) | +12 dBu |
| Power consumption | 18 W |
| Dimensions (H × W × D) | 133 mm × 482 mm × 150 mm |
| Weight | 2.9 kg |
All Behringer eurorack RX1202FX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many channels does the EURORACK PRO RX1202FX have?
It provides 12 channels – 8 microphone inputs with phantom power and 4 line inputs.
What is the power consumption of the RX1202FX?
The unit consumes 18 W of power.
