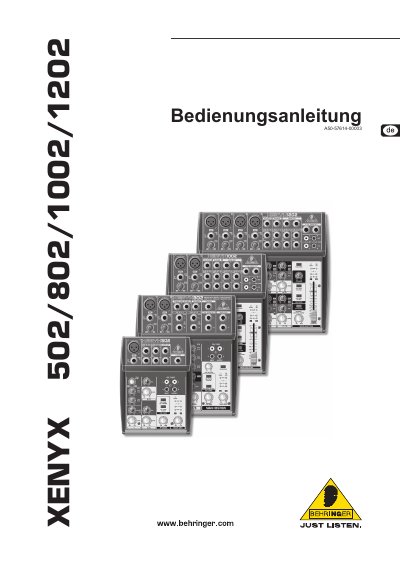

Behringer XENYX 502/802/1002/1202 Mixer User Manual
This manual provides comprehensive instructions for the Behringer XENYX series of mixing consoles, specifically models 502, 802, 1002, and 1202. It details the setup, operation of various input channels including XENYX Mic Preamps, and the configuration of the main mix and monitor sections. The guide emphasizes safety precautions regarding electrical connections and proper usage to ensure optimal performance and longevity of the equipment. This manual is written in German.
Read onlineBehringer 502/802/1002/1202 specifications
| Microphone Preamps | XENYX Mic Preamps with optional phantom power |
|---|---|
| Dynamics Range | 130 dB |
| Frequency Response | under 10 Hz to over 200 kHz |
| Transistors | 2SV888 |
| Gain | up to 60 dB |
| Phantom Power | +48 V |
| Equalizer Technology | British EQ |
All Behringer 502/802/1002/1202 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the frequency response of the XENYX Mic Preamps?
The frequency response ranges from under 10 Hz to over 200 kHz.
Does the mixer support phantom power?
Yes, the microphone channels feature optional +48 V phantom power.
How do I enable phantom power on the XENYX console?
Press the PHANTOM switch; the +48 V LED lights up to indicate phantom power is active.
What does the LOW CUT filter do?
It eliminates unwanted low‑frequency signal components with a steep 18 dB/octave slope.
How should the power supply be connected safely?
Use only the supplied AC adapter, connect the adapter to the mains first, then connect the mixer to the adapter, and always keep the unit grounded.
From: Behringer XENYX 502/802/1002/1202 Mixing Console User Manual
What phantom power voltage is provided and which models support it?
The phantom power supplies +48 V and is available on the 802, 1002, and 1202 models.
From: Behringer XENYX 502/802/1002/1202 Mixing Console User Manual
