Start here

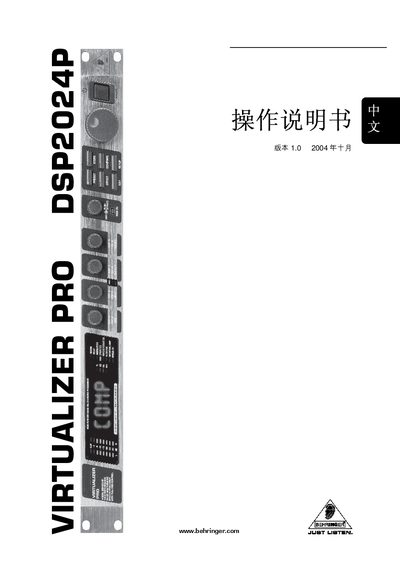

Behringer DSP2024P User Manual
This manual introduces the Behringer VIRTUALIZER PRO DSP2024P multi‑effects processor, covering safety, installation, power requirements and basic operation. It details the front‑panel controls, edit encoders, preset handling and the various effect algorithms available.
The document also describes the full MIDI implementation (IN, OUT, THRU), the SETUP menu for global parameters, and provides a complete technical data sheet with electrical and audio specifications. This manual is written in Chinese.
Behringer DSP2024P specifications
| Input impedance | 80 kΩ |
|---|---|
| Nominal input level | -10 dBV or +4 dBu (selectable) |
| Maximum input level | +15 dBu |
| Output impedance | 80 Ω |
| Frequency response | 20 Hz – 20 kHz ±3 dB |
| Signal‑to‑noise ratio | 91 dB (A‑weighted) |
| Total harmonic distortion | 0.018 % (typ.) @ +4 dBu, 1 kHz |
| Sample rate | 46.875 kHz |
| Power consumption (max) | 15 W |
| Power supply voltage | 120 V ~ 60 Hz (US/Canada) / 230 V ~ 50 Hz (EU/UK) / 100 V ~ 50‑60 Hz (Japan) |
Source: Behringer DSP2024P User Manual
All Behringer DSP2024P documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many user presets can be stored?
The DSP2024P can store up to 100 user presets.
How do I reset the processor to factory presets?
Hold the STORE and PRESET buttons together until “INIT” appears on the display; the unit will revert to factory settings.
How many user presets can be saved?
The Virtualizer Pro can store up to 100 user presets.
What voltage settings are available for the power supply?
The unit can be switched between 120 V and 230 V by rotating the fuse holder 180°.
