Start here

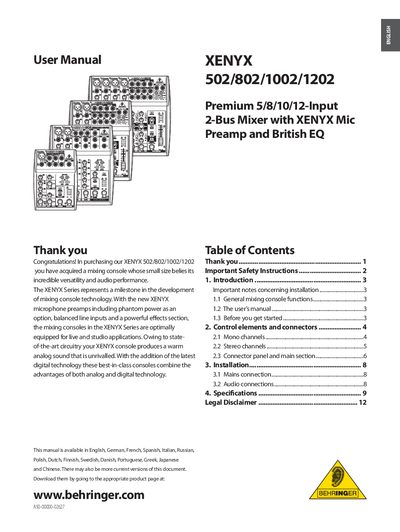

Behringer XENYX 502/802/1002/1202 User Manual
This manual provides an overview of the XENYX series mixing consoles, describing the microphone preamps, British EQ, and the range of input and output options. It explains the basic functions of signal processing, distribution, and mixing, and guides users through the control layout.
The document also details safety instructions, installation steps, connector descriptions, and technical specifications. It includes information on phantom power, low‑cut filters, FX sends, and other features needed for both live and studio applications.
Behringer XENYX 502/802/1002/1202 specifications
| Mic preamp dynamic range | 130 dB |
|---|---|
| Equalizer bands (502 model) | 2‑band EQ |
| Equalizer bands (other models) | 3‑band EQ |
| Low‑cut filter slope | 18 dB/oct., -3 dB at 75 Hz |
| Band boost/cut range | ±15 dB |
| Phantom power voltage | +48 V |
| Input sensitivity options | +4 dBu / -10 dBV |
All Behringer XENYX 502/802/1002/1202 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I enable phantom power on the XENYX console?
Press the PHANTOM switch; the +48 V LED lights up to indicate phantom power is active.
What does the LOW CUT filter do?
It eliminates unwanted low‑frequency signal components with a steep 18 dB/octave slope.
How should the power supply be connected safely?
Use only the supplied AC adapter, connect the adapter to the mains first, then connect the mixer to the adapter, and always keep the unit grounded.
From: Behringer XENYX 502/802/1002/1202 Mixing Console User Manual
What phantom power voltage is provided and which models support it?
The phantom power supplies +48 V and is available on the 802, 1002, and 1202 models.
From: Behringer XENYX 502/802/1002/1202 Mixing Console User Manual
