Start here

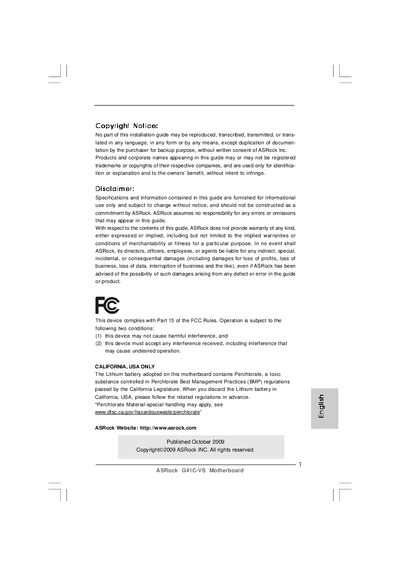

ASRock G41C-VS Motherboard Quick Installation Guide
The guide introduces the ASRock G41C-VS Micro‑ATX motherboard, lists the package contents and provides a step‑by‑step installation procedure. It also points users to the full user manual on the support CD for detailed information.
Key sections cover the motherboard layout, CPU socket type, memory slots, expansion slots, integrated graphics, audio, LAN, rear I/O connectors, BIOS features and safety warnings. The document includes specifications, cautions for over‑clocking, and references to ASRock utilities such as OC Tuner and Instant Flash.
ASRock G41C-VS specifications
| Form factor | Micro ATX (8.8 in × 7.8 in) |
|---|---|
| CPU socket | LGA 775 |
| Chipset | Intel G41 northbridge, Intel ICH7 southbridge |
| Expansion slots | 1 × PCI Express x16, 1 × PCI |
| Integrated graphics | Intel Graphics Media Accelerator X4500 |
| LAN controller | Atheros AR8132L, 10/100 Mbps |
| SATA connectors | 2 × SATA II 3.0 Gb/s (no RAID, no hot‑plug) |
| BIOS | 8 MB AMI BIOS |
All ASRock G41C-VS documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What is the form factor of the ASRock G41C-VS motherboard?
It is a Micro‑ATX board measuring 8.8 in × 7.8 in (22.4 cm × 19.8 cm).
Which CPU socket does the ASRock G41C-VS support?
The board uses an LGA 775 socket compatible with Intel Core 2, Pentium Dual‑Core and Celeron Dual‑Core CPUs.
What CPU socket does the ASRock G41C-VS motherboard use?
It uses an LGA 775 socket for Intel Core 2, Pentium Dual‑Core, Celeron Dual‑Core and compatible processors.
Which LAN chip is integrated on the G41C‑VS motherboard?
It includes an Atheros AR8132L controller providing 10/100 Ethernet connectivity.
Which Windows operating systems are supported by the G41C‑VS motherboard?
The board supports Microsoft® Windows® 7, Windows 7 64‑bit, Vista, Vista 64‑bit, XP and XP 64‑bit.
How many USB 2.0 ports are available on the rear I/O panel?
There are four ready‑to‑use USB 2.0 ports on the rear panel.
