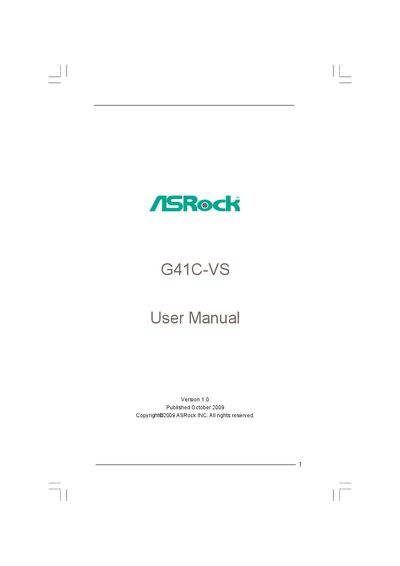

This document is the user manual for ASRock G41C-VS motherboard, which describes the features and characteristics of the motherboard. The version of this motherboard is 1.0, published in October 2009. The content of the document is protected by copyright and cannot be reproduced, transcribed, transmitted, or translated without written consent from ASRock Inc. The products and corporate names mentioned in the document may or may not be registered trademarks or copyrights of their respective companies, and are used for identification or explanation without intent to infringe. The specifications and information in this document are provided for informational use only and are subject to change without notice. ASRock is not responsible for any errors or omissions in this document. ASRock does not provide any warranty, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages.
This manual covers the hardware installation steps for the ASRock G41C-VS motherboard, including CPU, memory, and expansion slot installation, as well as wiring and connector details. It also explains BIOS configuration options, overclocking features, and software support provided on the included support CD.
Additional sections describe safety notices, FCC compliance, and troubleshooting guidance, helping users set up Windows operating systems and configure peripherals such as USB, SATA, and audio devices.
| Form Factor | Micro ATX (8.8" x 7.8") |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron Dual Core / Celeron |
| Chipset | Northbridge Intel® G41, Southbridge Intel® ICH7 |
| Maximum Memory | 8 GB |
| Expansion Slots | 1x PCI Express x16, 1x PCI |
| Graphics | Intel® Graphics Media Accelerator X4500 |
| Audio | Realtek ALC662 5.1‑channel HD Audio |
| LAN | Atheros® PCI‑Ex1 LANAR8132L, 10/100 Mbps |
| Rear USB Ports | 4 × USB 2.0 |
| SATA Connectors | 2 × SATAII 3.0 Gb/s (no RAID, no hot‑plug) |
The board supports Microsoft® Windows® 7, Windows 7 64‑bit, Vista, Vista 64‑bit, XP and XP 64‑bit.
There are four ready‑to‑use USB 2.0 ports on the rear panel.
The maximum system memory capacity is 8 GB.
Yes, it includes two SATA II 3.0 Gb/s connectors (without RAID or hot‑plug support).
