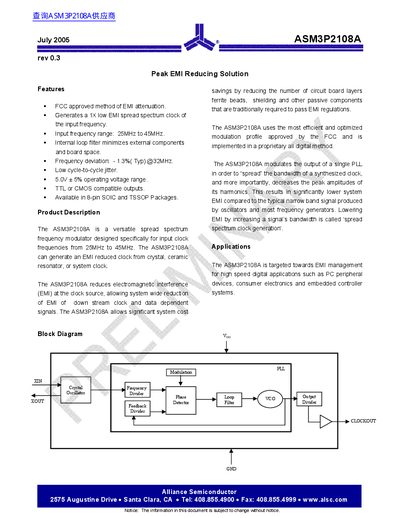

Alliance Semiconductor ASM3P2108A Spread Spectrum Frequency Modulator Datasheet
The ASM3P2108A is a versatile spread spectrum frequency modulator designed specifically for input clock frequencies ranging from 25MHz to 45MHz. It generates an EMI-reduced clock from crystal, ceramic resonator, or system clock sources. The device uses a proprietary all-digital method to modulate the output of a single PLL, effectively decreasing the peak amplitudes of harmonics and lowering system-wide electromagnetic interference (EMI).
Read onlineAlliance Semiconductor ASM3P2108A specifications
| Input frequency range | 25MHz to 45MHz |
|---|---|
| Operating voltage | 5.0V +/- 5% |
| Frequency deviation | - 1.3% (Typ) @32MHz |
| Output rise time | 440 ps (Typ) |
| Output fall time | 300 ps (Typ) |
| Cycle-to-cycle jitter | 360 ps (Max) |
| Output duty cycle | 45% to 55% |
Source: Alliance Semiconductor ASM3P2108A Spread Spectrum Frequency Modulator Datasheet
All Alliance Semiconductor ASM3P2108A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input frequency range for the ASM3P2108A?
The device supports input frequencies from 25MHz to 45MHz.
From: Alliance Semiconductor ASM3P2108A Spread Spectrum Frequency Modulator Datasheet
What operating voltage is required?
The device operates with a 5.0V supply voltage with a tolerance of +/- 5%.
From: Alliance Semiconductor ASM3P2108A Spread Spectrum Frequency Modulator Datasheet
What input frequency range does the ASM3P2108A support?
The device supports an input frequency range of 25MHz to 45MHz.
From: Alliance Semiconductor ASM3P2108A Spread Spectrum Frequency Modulator Datasheet
What is the typical frequency deviation at 32MHz?
The typical frequency deviation is -1.3% when operating at 32MHz.
From: Alliance Semiconductor ASM3P2108A Spread Spectrum Frequency Modulator Datasheet
