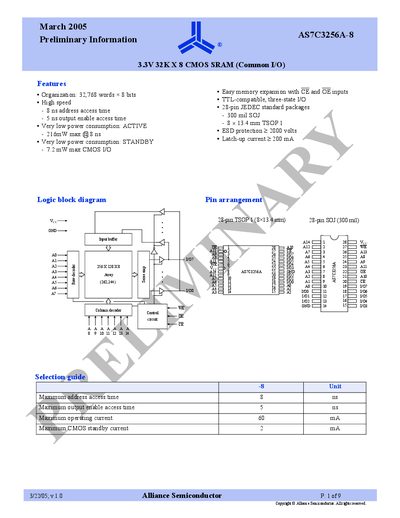

Alliance Semiconductor AS7C3256A-8 3.3V 32K×8 CMOS SRAM (Common I/O) Datasheet
The AS7C3256A-8 SRAM is organized as 32,768 words by 8 bits and operates from a 3.3 V supply. It offers high‑speed performance with an 8 ns address access time and a 5 ns output‑enable access time, while consuming only 216 mW active power and 7.2 mW in standby. The device features TTL‑compatible three‑state I/O, ESD protection of 2000 V, and latch‑up current greater than 200 mA.
The memory is available in standard 28‑pin JEDEC packages: a 300 mil SOJ and an 8 × 13.4 mm TSOP. Recommended operating conditions include a supply voltage range of 3.0 V to 3.6 V (typical 3.3 V) and an ambient temperature range up to +125 °C. Ordering information and part‑number suffixes for lead‑free versions are provided in the document.
Alliance Semiconductor AS7C3256A specifications
| Organization | 32,768 words x 8 bits |
|---|---|
| Supply voltage (typical) | 3.3 V |
| Address access time | 8 ns |
| Output enable access time | 5 ns |
| Active power consumption | 216 mW max @ 8 ns |
| ESD protection | 2000 volts |
| Latch‑up current | > 200 mA |
| Ambient temperature range | -55 °C to +125 °C |
Source: Alliance Semiconductor AS7C3256A-8 3.3V 32K×8 CMOS SRAM (Common I/O) Datasheet
All Alliance Semiconductor AS7C3256A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the address access time of the AS7C3256A-8?
The address access time is 8 ns.
From: Alliance Semiconductor AS7C3256A-8 3.3V 32K×8 CMOS SRAM (Common I/O) Datasheet
What supply voltage range is recommended for the device?
The recommended supply voltage is 3.0 V to 3.6 V, with 3.3 V typical.
From: Alliance Semiconductor AS7C3256A-8 3.3V 32K×8 CMOS SRAM (Common I/O) Datasheet
What is the supply voltage range for the AS7C3256A?
The device operates from 3.0 V to 3.6 V.
How much power does the AS7C3256A consume in standby mode?
Standby power consumption is up to 7.2 mW.
