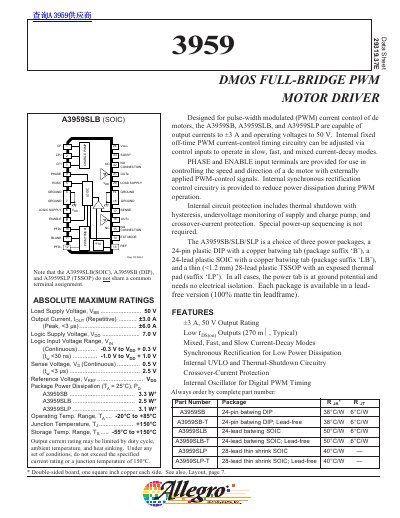

Allegro A3959 DMOS Full-Bridge PWM Motor Driver Datasheet
The Allegro A3959 is a DMOS full-bridge PWM motor driver designed for pulse-width modulated current control of DC motors. It supports output currents up to +3 A and operating voltages up to 50 V. The device features internal fixed off-time PWM current-control timing circuitry that can be adjusted to operate in slow, fast, and mixed current-decay modes. It includes internal synchronous rectification control to reduce power dissipation and offers protection features such as thermal shutdown with hysteresis, undervoltage monitoring, and crossover-current protection. The component is available in three power packages: 24-pin plastic DIP, 24-lead plastic SOIC, and 28-lead plastic TSSOP.
Read onlineAllegro A3959 specifications
| Output Current | +3 A |
|---|---|
| Operating Voltage | 50 V |
| Output On Resistance | 270 mΩ |
| Operating Temperature Range | -20°C to +85°C |
| Junction Temperature | +150°C |
| Internal Oscillator Frequency | 4.25 MHz |
Source: Allegro A3959 DMOS Full-Bridge PWM Motor Driver Datasheet
All Allegro A3959 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the current decay modes supported?
The device supports slow, fast, and mixed current-decay modes.
From: Allegro A3959 DMOS Full-Bridge PWM Motor Driver Datasheet
What is the typical internal oscillator frequency?
The typical internal oscillator frequency is 4.25 MHz.
From: Allegro A3959 DMOS Full-Bridge PWM Motor Driver Datasheet
What is the maximum output current of the A3959 driver?
The device can source or sink up to ±3 A of continuous current.
From: Allegro A3959 DMOS Full-Bridge PWM Motor Driver Handbook
Which supply voltage range does the A3959 support?
It operates with a supply voltage (VBB) up to 50 V.
From: Allegro A3959 DMOS Full-Bridge PWM Motor Driver Handbook
