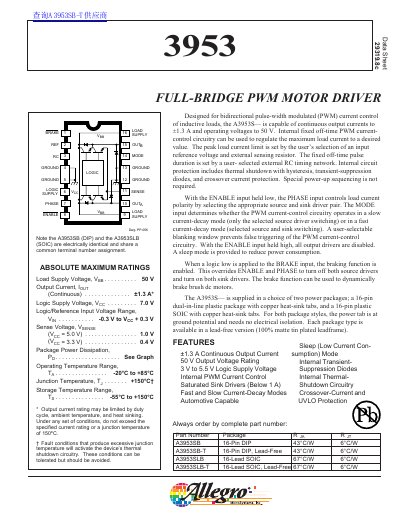

Allegro A3953S- Full-Bridge PWM Motor Driver Datasheet
The Allegro MicroSystems A3953S- is a full-bridge PWM motor driver designed for bidirectional pulse-width modulated (PWM) current control of inductive loads, such as brushless DC motors. It supports continuous output currents up to +1.3 A and operating voltages up to 50 V.
Read onlineAllegro A3953S specifications
| Load Supply Voltage | - 50V |
|---|---|
| Logic Supply Voltage | 3.0 V to 5.5 V |
| Junction Temperature | +150°C |
Source: Allegro A3953S- Full-Bridge PWM Motor Driver Datasheet
All Allegro A3953S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does this driver support automotive applications?
Yes, the datasheet lists 'Automotive Capable' as a feature.
From: Allegro A3953S- Full-Bridge PWM Motor Driver Datasheet
What is the maximum continuous output current rating for the A3953S-?
The device is capable of continuous output currents to +1.3 A.
From: Allegro A3953S- Full-Bridge PWM Motor Driver Datasheet
What are the available package types for the A3953S?
The device is supplied in a 16-pin dual-in-line plastic package with copper heat-sink tabs or a 16-pin plastic SOIC with copper heat-sink tabs.
Does the device include thermal protection?
Yes, internal circuit protection includes thermal shutdown with hysteresis.
