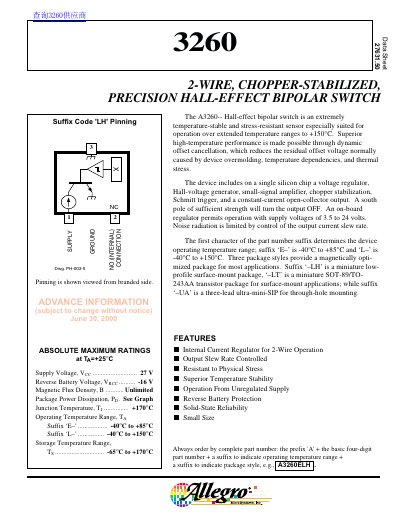

Allegro MicroSystems A3260 Bipolar Switch Datasheet
The Allegro MicroSystems A3260 is a 2-wire, chopper-stabilized, precision Hall-effect bipolar switch designed for operation over extended temperature ranges up to +150°C. It features an internal current regulator for 2-wire operation, output slew rate control, and reverse battery protection. The device integrates a voltage regulator, Hall-voltage generator, amplifier, and Schmitt trigger on a single silicon chip.
Read onlineAllegro A3260 specifications
| Supply Voltage | 3.5 to 24 V |
|---|---|
| Output Current (ON) | 40 to 65 mA |
| Output Current (OFF) | -11 to -145 mA |
| Chopping Frequency | 340 kHz |
| Output Settling Time | 20 µs |
| Operate Point | 10 to 30 G |
| Release Point | -30 to -10 G |
All Allegro A3260 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range for suffix 'L'?
The operating temperature range for suffix 'L' is -40°C to +150°C.
What is the supply voltage range?
The device permits operation with supply voltages of 3.5 to 24 volts.
What is the operating temperature range for suffix 'L'?
The device with suffix 'L-' operates from -40°C to +150°C.
From: Allegro A3260 Precision Hall-Effect Bipolar Switch Datasheet
What is the operating temperature range for suffix 'E'?
The device with suffix 'E-' operates from -40°C to +85°C.
From: Allegro A3260 Precision Hall-Effect Bipolar Switch Datasheet
