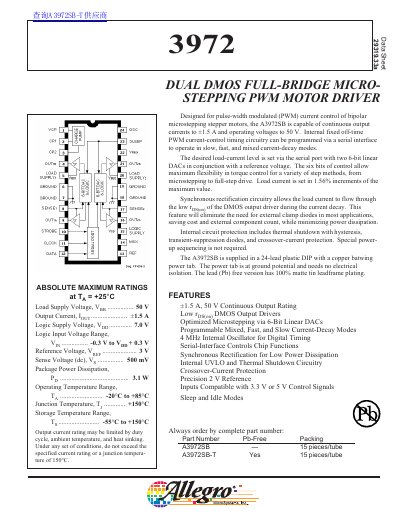

Allegro A3972SB Dual DMOS Full-Bridge Microstepping PWM Motor Driver Datasheet
The A3972SB is a dual DMOS full-bridge microstepping PWM motor driver designed for pulse-width modulated (PWM) current control of bipolar microstepping stepper motors. It supports continuous output currents up to +1.5 A and operating voltages up to 50 V. The device features internal fixed off-time PWM current-control timing circuitry that can be programmed via a serial interface to operate in slow, fast, and mixed current-decay modes.
Read onlineAllegro A3972SB specifications
| Load Supply Voltage | 15 to 50 V |
|---|---|
| Continuous Output Current | +1.5 A |
| Junction Temperature | +150°C |
| Logic Supply Voltage | 4.5 to 5.5 V |
| Package Type | 24-lead plastic DIP |
Source: Allegro A3972SB Dual DMOS Full-Bridge Microstepping PWM Motor Driver Datasheet
All Allegro A3972SB documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous output current?
The device is capable of continuous output currents to +1.5 A.
From: Allegro A3972SB Dual DMOS Full-Bridge Microstepping PWM Motor Driver Datasheet
Can the current-decay mode be programmed?
Yes, internal fixed off-time PWM current-control timing circuitry can be programmed via a serial interface to operate in slow, fast, and mixed current-decay modes.
From: Allegro A3972SB Dual DMOS Full-Bridge Microstepping PWM Motor Driver Datasheet
What is the maximum continuous output current rating for this motor driver?
The A3972SB is capable of continuous output currents to +1.5 A.
From: Allegro A3972SB Dual DMOS Full-Bridge Microstepping PWM Motor Driver Datasheet
What are the minimum and maximum load supply voltage limits?
The device supports a load supply voltage range from 15 V to 50 V during operation.
From: Allegro A3972SB Dual DMOS Full-Bridge Microstepping PWM Motor Driver Datasheet
