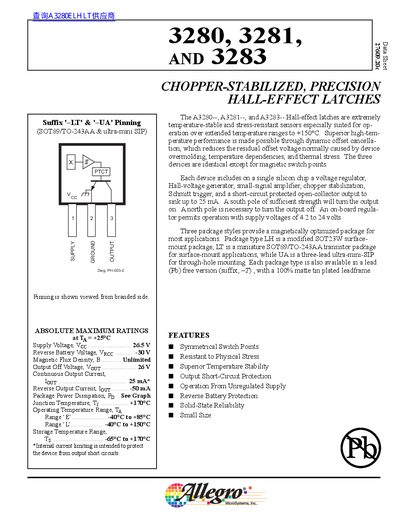

Allegro MicroSystems A3280/3281/3283 Hall-Effect Latches Datasheet
This document describes the A3280, A3281, and A3283 Hall-effect latches, which are chopper-stabilized, precision sensors designed for operation over extended temperature ranges up to +150°C. The devices are identical except for their magnetic switch points and include an on-board voltage regulator allowing operation with supply voltages from 4.2 to 24 volts. Each device integrates a voltage regulator, Hall-voltage generator, amplifier, chopper stabilization, Schmitt trigger, and a short-circuit protected open-collector output capable of sinking up to 25 mA.
Read onlineAllegro A3280 specifications
| Continuous Output Current | 25 mA |
|---|---|
| Operating Temperature Range (Suffix E) | -40°C to +85°C |
| Chopping Frequency | 340 kHz |
Source: Allegro MicroSystems A3280/3281/3283 Hall-Effect Latches Datasheet
All Allegro A3280 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for these Hall-effect latches?
The devices permit operation with supply voltages of 4.2 to 24 volts.
From: Allegro MicroSystems A3280/3281/3283 Hall-Effect Latches Datasheet
What supply voltage range can these Hall-effect latches operate with?
The devices permit operation with supply voltages ranging from 4.2 to 24 volts.
From: Allegro MicroSystems A3280/3281/3283 Hall-Effect Latches Datasheet
What are the three main differences between the A3280, A3281, and A3283 devices?
The three devices are identical except for their magnetic switch points.
From: Allegro MicroSystems A3280/3281/3283 Hall-Effect Latches Datasheet
What supply voltage range can these Hall-effect latches operate with?
The devices permit operation with supply voltages ranging from 4.2 to 24 volts.
From: Allegro MicroSystems A3280/3281/3283 Hall-Effect Latches Datasheet
What are the three main differences between the A3280, 3281, and 3283 devices?
The three devices are identical except for their magnetic switch points.
What is the maximum continuous output current these latches can sink?
The device can sink up to 25 mA of continuous output current.
