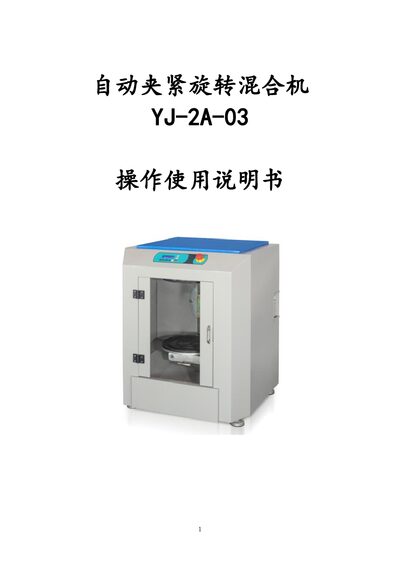

The manual provides specifications, safety guidelines, operation steps, parameter settings, and troubleshooting for the YJ-2A-03 automatic clamping rotary…
This user manual describes the technical specifications of the YJ-2A-03 automatic clamping rotary mixer, including mixing time range, capacity, motor power and adjustable rotation speeds. It also outlines the warranty terms and safety requirements for proper installation and use.
The guide walks the operator through basic operation procedures, button functions, parameter configuration, and provides detailed fault diagnosis with corrective actions. All instructions are intended for trained personnel to ensure safe and reliable operation. This manual is written in Chinese.
| Mixing time range | 15 seconds – 9 minutes 45 seconds |
|---|---|
| Mixing capacity | 1 – 20 L |
| Maximum load | 1 – 35 kg |
| Adjustable rotation speed (large bucket) | 90 rpm (default) |
| Bucket height range | 95 – 410 mm |
| Power supply | 220 V ± 10 % 50 Hz |
| Motor power | 750 W |
The mixing time can be set from 15 seconds up to 9 minutes 45 seconds.
The machine can handle a maximum load of 35 kg.
Press the designated key to increase or decrease the time by 15‑second increments; the minimum is 15 seconds and the maximum is 9 minutes 45 seconds.
The mixer operates on 220 V ± 10 % at 50 Hz.
