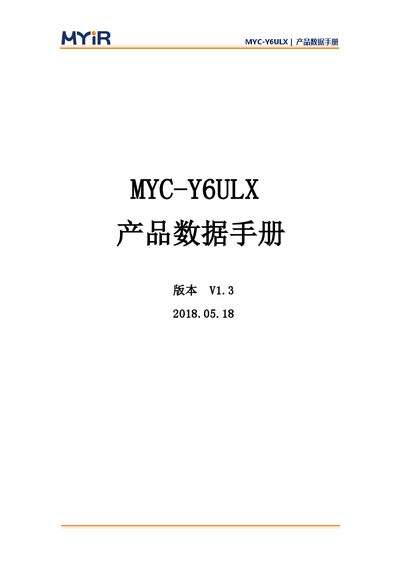

Technical data sheet for the Myir MYC-Y6ULX embedded core board based on NXP i.MX 6UL/6ULL processors.
The MYC‑Y6ULX is an embedded core board from Myir that uses NXP i.MX 6UL/6ULL series processors. It provides a range of interfaces such as Ethernet, USB OTG, CAN, multiple ADCs, and supports Linux 4.1.15 drivers. The board is offered in several configurations with different memory and peripheral options.
The document details hardware parameters, electrical and mechanical specifications, and includes information on the evaluation kit, contact details, and after‑sales support. It also provides design guidelines such as power‑up sequencing and pin usage notes. This manual is written in Chinese.
| CPU Core | ARM Cortex‑A7 |
|---|---|
| CPU Speed | up to 900 MHz |
| L2 Cache | 128 KB |
| Commercial Operating Temperature | 0 °C to +70 °C |
| PCB Size | 37 mm × 39 mm, 10 mm thickness |
| USB OTG Ports | 2 USB 2.0 OTG HS/FS |
The commercial version operates from 0 °C up to +70 °C.
The CPU main power must be applied before any peripheral power to avoid startup issues.
