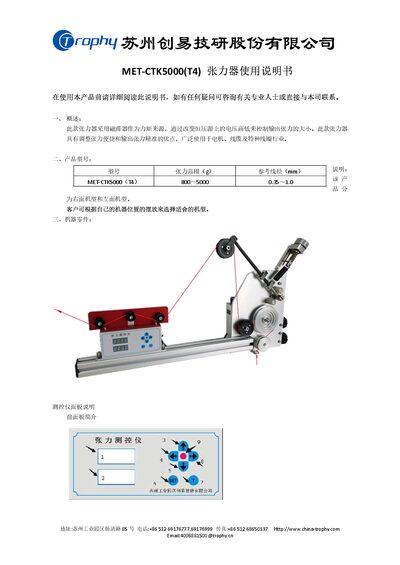

This manual explains the overview, model options, parts, operation, installation and safety guidelines for the MET CTK5000(T4) tensioner.
The MET CTK5000(T4) tensioner uses a magnetic hysteresis element as the torque source, controlling output tension by adjusting the voltage of a constant‑voltage source. It is suitable for motor, cable and special coil applications and offers precise, easy tension adjustment.
The document covers model selection, front‑panel and side‑panel descriptions, wiring connections, basic operation steps, installation requirements and safety precautions, including LED indicators for tension limits and power‑supply specifications. This manual is written in Chinese.
| Tension range | 800–5000 g |
|---|---|
| Power input | 24 V DC, 3 A constant current |
| Installation hole diameter (tension frame) | 2 mm |
| Installation hole diameter (alternative) | 16 mm |
Press the short‑press SET key to enter the limit‑setting screen, adjust the values with the data keys, and watch the LEDs: red stays on when tension exceeds the upper limit, white stays on when below the lower limit, and no light indicates the tension is within range.
Long‑press the T button to perform a zero‑clear operation; the status indicator will flash to confirm the reset.
