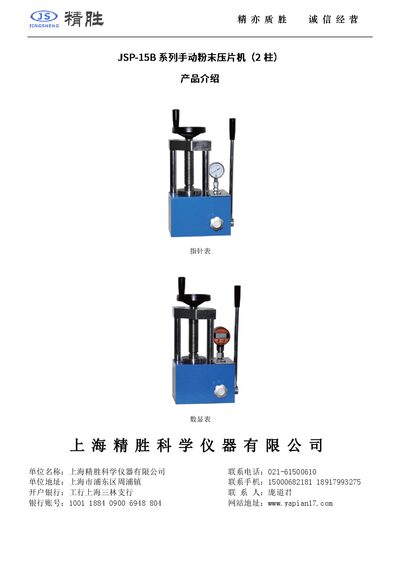

This manual provides operation steps, safety precautions, and technical specifications for the JSP-15B laboratory powder tablet press.
The JSP-15B is a compact, high‑pressure laboratory powder tablet press designed for research, teaching, testing, pharmaceutical, catalytic and chemical applications. Its one‑piece structure eliminates seal connections, greatly reducing the risk of oil leakage.
The manual covers product overview, design advantages, a detailed structure diagram, safety precautions, step‑by‑step operating instructions, and a full list of technical parameters such as pressure range, piston size, and dimensions. This manual is written in Chinese.
| Pressure range | 0‑15 tons (0‑30 MPa) |
|---|---|
| Piston diameter | 80 mm (chromium‑plated cylinder) |
| Maximum piston stroke | 30 mm |
| Device weight | 38 kg |
| Working space dimensions | 140 × 140 × 150 mm |
| Digital pressure gauge range | 0.00‑40.00 MPa |
The machine can generate pressure from 0 to 15 tons, which corresponds to 0‑30 MPa.
Use clean 46‑grade anti‑wear hydraulic oil for the press.
Regularly add lubricating oil to the screw to prevent rust and ensure smooth operation.
Tighten the oil‑release valve slightly, press to 5‑10 MPa, then release the load; repeat 2‑3 times before normal operation.
