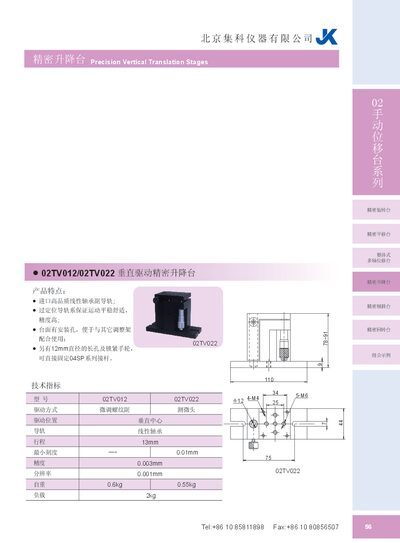

The 02TV022 precision vertical translation stage from 北京集科仪器有限公司 features high‑quality linear bearings, precise positioning, and a load capacity of 0.55 kg.
The 02TV022 vertical‑drive precision translation stage offers imported high‑quality linear bearing pairs and an over‑positioning guide system that ensures smooth, comfortable motion with high accuracy. The tabletop includes mounting holes for easy integration with other adjustment frames, plus a 12 mm diameter long hole and a lock‑nut handwheel for direct attachment of 04SP series rods.
Technical specifications include a minimum scale accuracy of 0.01 mm, a weight of 0.55 kg, and other parameters such as drive method and travel range as listed in the product data sheet. This manual is written in Chinese.
It uses imported high‑quality linear bearing pairs.
The tabletop has mounting holes and a 12 mm diameter long hole with a lock‑nut handwheel for direct fixing of 04SP series rods.
