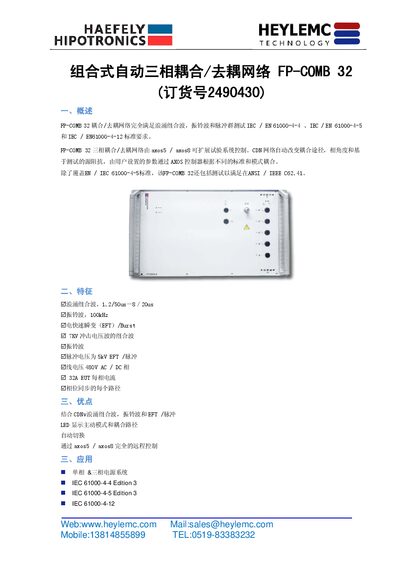

The HeyLEMC FP-COMB 32 is a three‑phase coupling/decoupling network that meets IEC/EN 61000‑4‑4, ‑5 and ‑12 surge test standards.
The FP-COMB 32 is an automatic three‑phase coupling/decoupling network controlled by the axos5/axos8 test system. It can automatically change coupling paths, phase angles and source impedance based on user‑set parameters to satisfy IEC/EN 61000‑4‑4, ‑5, ‑12 and ANSI C62.41/ C62.45 requirements for surge, ringing and pulse‑group testing.
Key features include support for surge combination waves, ringing waves up to 100 kHz, EFT/burst pulses, 7 kV surge voltage, 5 kV pulse voltage, 480 V line voltage, 32 A per phase current, and synchronized phase paths. The device offers remote control via axos5/axos8, LED status display, and automatic IEC/ANSI synchronization. This manual is written in Chinese.
| Input voltage range | 10V - 480V |
|---|---|
| Output voltage AC | Up to 480V AC |
| Output voltage DC | Up to 480V DC |
| Rated current per phase | 32A |
| Pulse group voltage range | 0.2kV - 5kV |
| Surge voltage range | 0.2kV - 7kV |
| Ringing wave voltage range | 0.2kV - 7kV |
| Maximum pulse input voltage | 5kV |
| Maximum surge input voltage | 7kV |
| Maximum ringing wave input voltage | 7kV |
The device can handle up to 32 A per phase.
It supports an input voltage from 10 V to 480 V.
