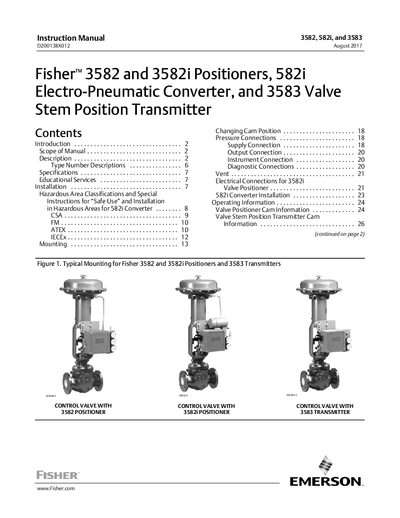

Instruction manual for Fisher 3582 pneumatic positioners, 3582i electro‑pneumatic positioners, 582i converters and 3583 stem transmitters covering…
This manual provides installation, operation, calibration, maintenance and parts‑ordering information for Fisher 3582 pneumatic valve positioners, 3582i electro‑pneumatic valve positioners, 582i electro‑pneumatic converters and 3583 valve stem position transmitters. It includes safety cautions, hazardous‑area classifications and detailed wiring and pneumatic connection diagrams.
The document also lists specifications, recommended supply pressures, temperature limits, air‑consumption data and certification details (CSA, FM, ATEX, IECEx). Sections cover mounting, cam adjustment, troubleshooting, and a complete parts list with loop schematics.
| Input Signal Range (3582) | 0.2 to 1.0 bar (3 to 15 psig) |
|---|---|
| Input Signal (3582i) | 4 to 20 mA DC constant current, 30 VDC max compliance |
| Recommended Supply Pressure | 0.3 bar (5 psi) above actuator requirement |
| Maximum Supply Pressure | 3.4 bar (50 psig) or pressure rating of actuator, whichever is lower |
| Approximate Weight (3582) | 2.5 kg (5.5 pounds) |
The recommended supply pressure is 0.3 bar (5 psi) above the actuator requirement.
It accepts a 4 to 20 mA DC constant‑current signal with up to 30 VDC compliance voltage.
The approximate weight is 2.5 kg (5.5 pounds).
